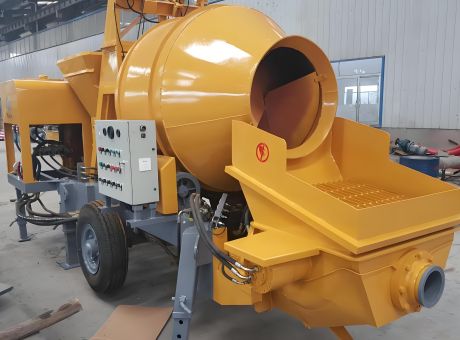

Main Models of Concrete Mixing Pump
Model | JBT15-6-60R | JBT30-10-78R | JBT40-10-78R | JBT30-10-45 |
Engine Power | Diesel | Diesel | Diesel | Electric |
Capacity | 15 m3/h | 30 m3/h | 40 m3/h | 30 m3/h |
Power | 60 kw | 78 kw | 78 kw | 45 kw |
Concrete Pressure | 6 Mpa | 10 Mpa | 10 Mpa | 10 Mpa |
Max. Aggregate Size | 30 mm | 30 mm | 30 mm | 30 mm |
Hopper Capacity | 300 L | 400 L | 500 L | 400 L |
Fuel Tank Capacity | 150 L | 150 L | 150 L |
|
Hydraulic Oil Tank | 200 L | 200 L | 200 L | 200 L |
Pump Vertical/Horizontal Distance | 50/150 m | 150/500 m | 150/500 m | 80/400 m |
Dimension | 4430*2100*2200 mm | 5400*1950*2100 mm | 6200*2100*3420 mm | 4700*1950*1800 mm |
Weight | 3000 kg | 4200 kg | 5200 kg | 3200 kg |
