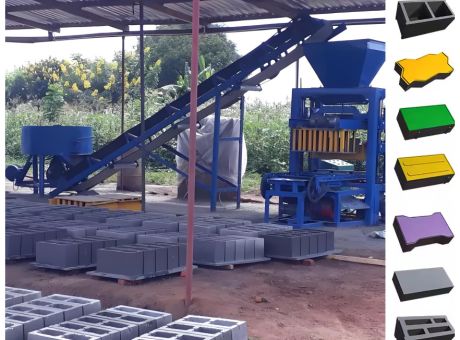

QTJ4-26 Semi-auto Block Making Machine

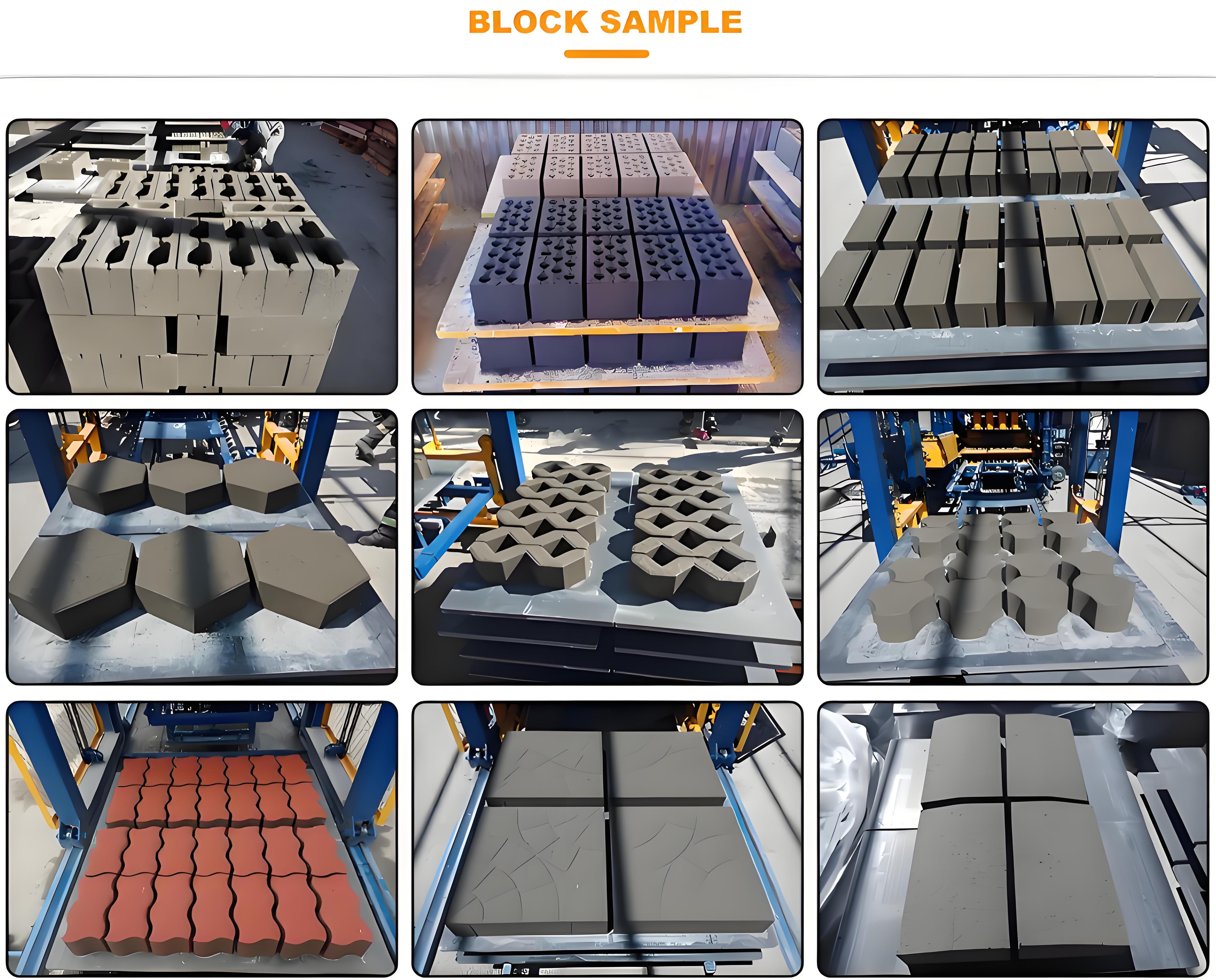

Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：26s
Production Capacity (e.g.)：390x190x190mm: 4pcs/mould, 4400pcs/day(8 hours)
Control Mode：Semi-automatic
Block Forming Mode：Platform Vibration
Are You Looking For?

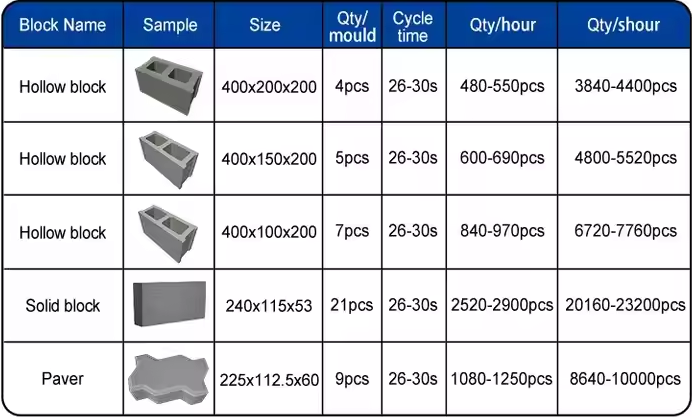

Production Capacity (block shapes and size can be customized)
Main Specifications
No. | Item | Specification |
1 | Block Forming Mode | Platform Vibration |
2 | Vibration Force | 45 KN |
3 | Vibration Frequency | 2800-4200 rpm |
4 | Production Cycle Time | 26 seconds |
5 | Main Motors Power | 14.25 kw |
6 | Pallet Size | 850x450 mm |
7 | Main Machine Size | 3600x1700x2560 mm |
8 | Applied Products | Hollow Block, Porous Block, Solid Block, Paving Block, Grass-planting Block, Kerbstone, etc. |
Main Components
No. | Components | Qty. |
1 | JW350 Pan Mixer | 1 unit |
2 | 6m Belt Conveyor | 1 pcs |
3 | QTJ4-26 Main Machine | 1 unit |
4 | Control Cabinet | 1 unit |

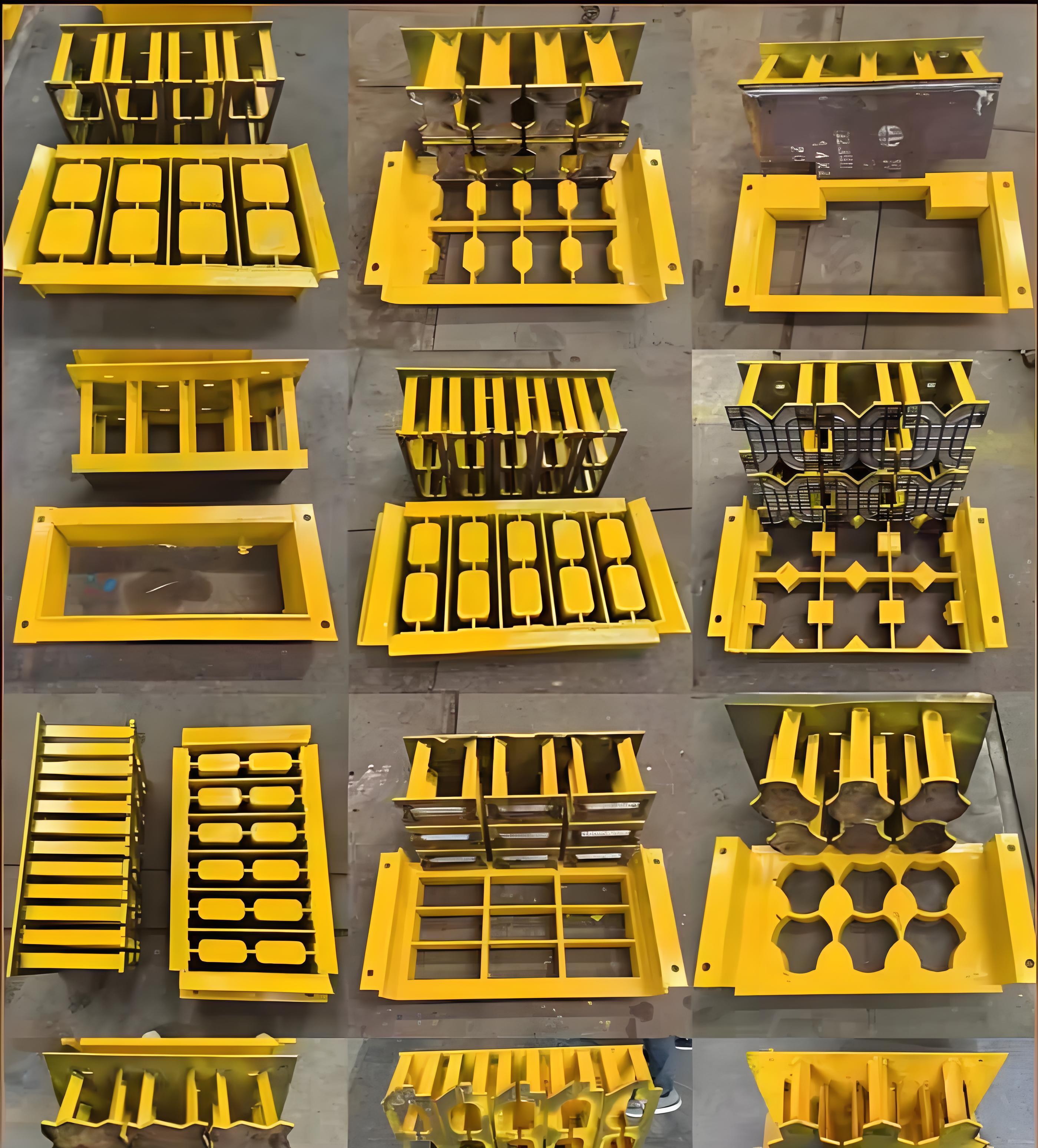

5 | Mould | 1 unit |
