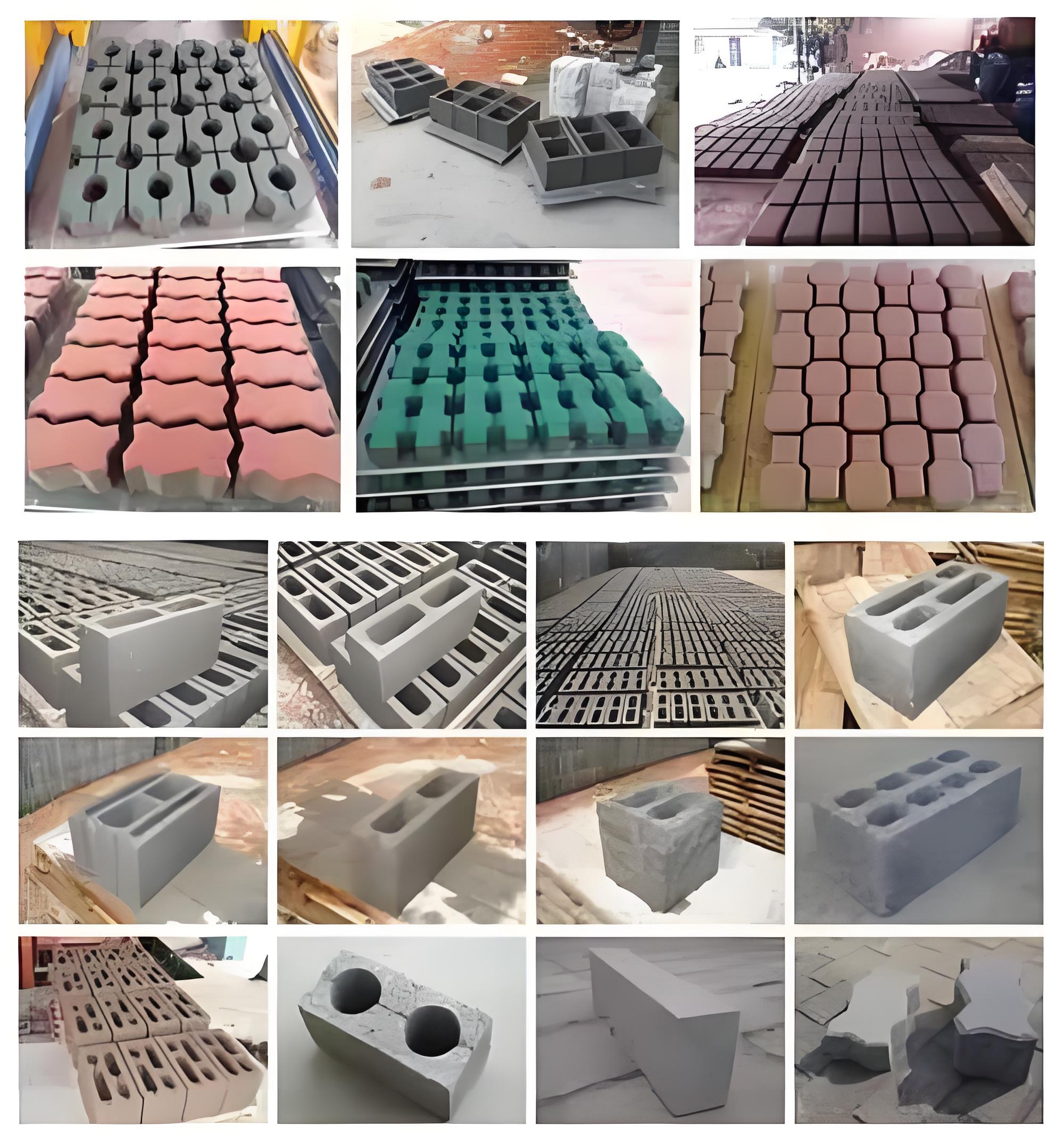

Block Type

Block Sample

Block Size

Cycle Time

Qty. / Mould

Qty. / Hour

Hollow Block

390x190x190mm

15-20 s

10 pcs

1,800-2,400 pcs

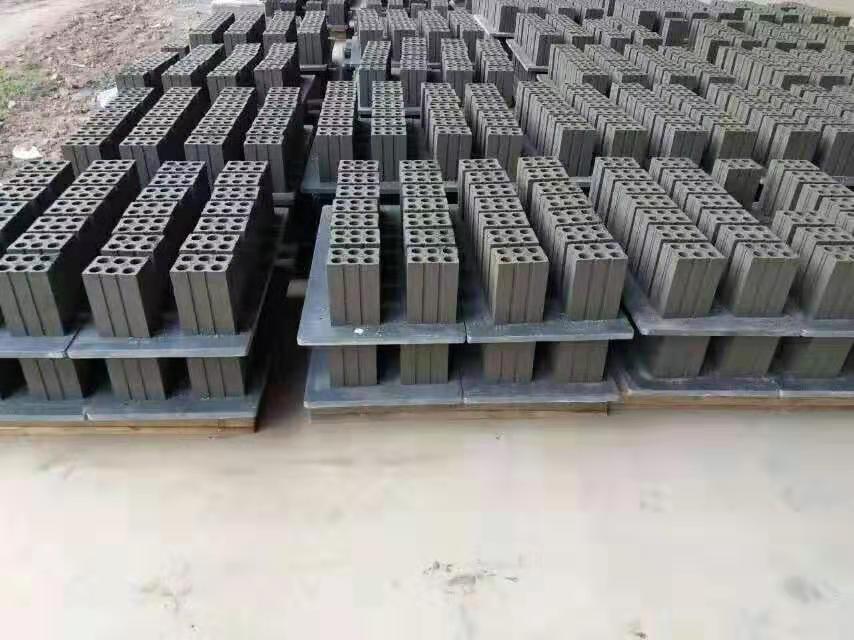

Porous Block

240x115x90mm

15-20 s

24 pcs

4,320-5,760 pcs

Solid Block

240x115x53mm

15-17 s

52 pcs

10,972-12,480 pcs

Paving Block

225x112.5x60mm

10-15 s

24 pcs

5,760-8,640 pcs

No.

Item

Specification

1

Block Forming Mode

Platform Vibration + Hydraulic Pressure

2

Effective Forming Area

1300 ×970 mm

3

Vibration Force

680 kN

4

Vibration Frequency

2800-4500 rpm

5

Rated Pressure

21 Mpa

6

Production Cycle Time

15-25 seconds

7

Main Motors Power

50.7 kw

8

Pallet Size

1300x950 mm

9

Main Machine Size

9350×2320×2950 mm

10

Main Machine Weight

14500 kg

11

Applied Products

Hollow Block, Porous Block, Solid Block, Paving Block, Grass-planting Block, Kerbstone, etc.

No.

Components

Qty.

1

PLD1200 Aggregate Batcher

1 unit

2

JS750 Twin-shaft Concrete Mixer

1 unit

3

8m Belt Conveyor for Raw Material (Double-layers)

1 pcs

4

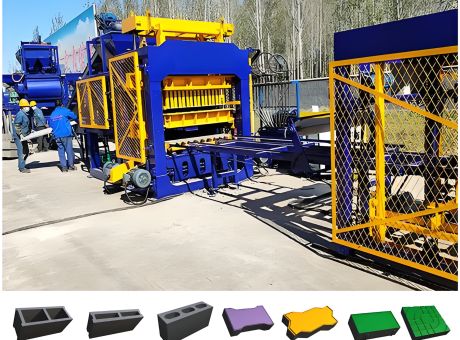

QT12-15 Block Making Machine

1 unit

5

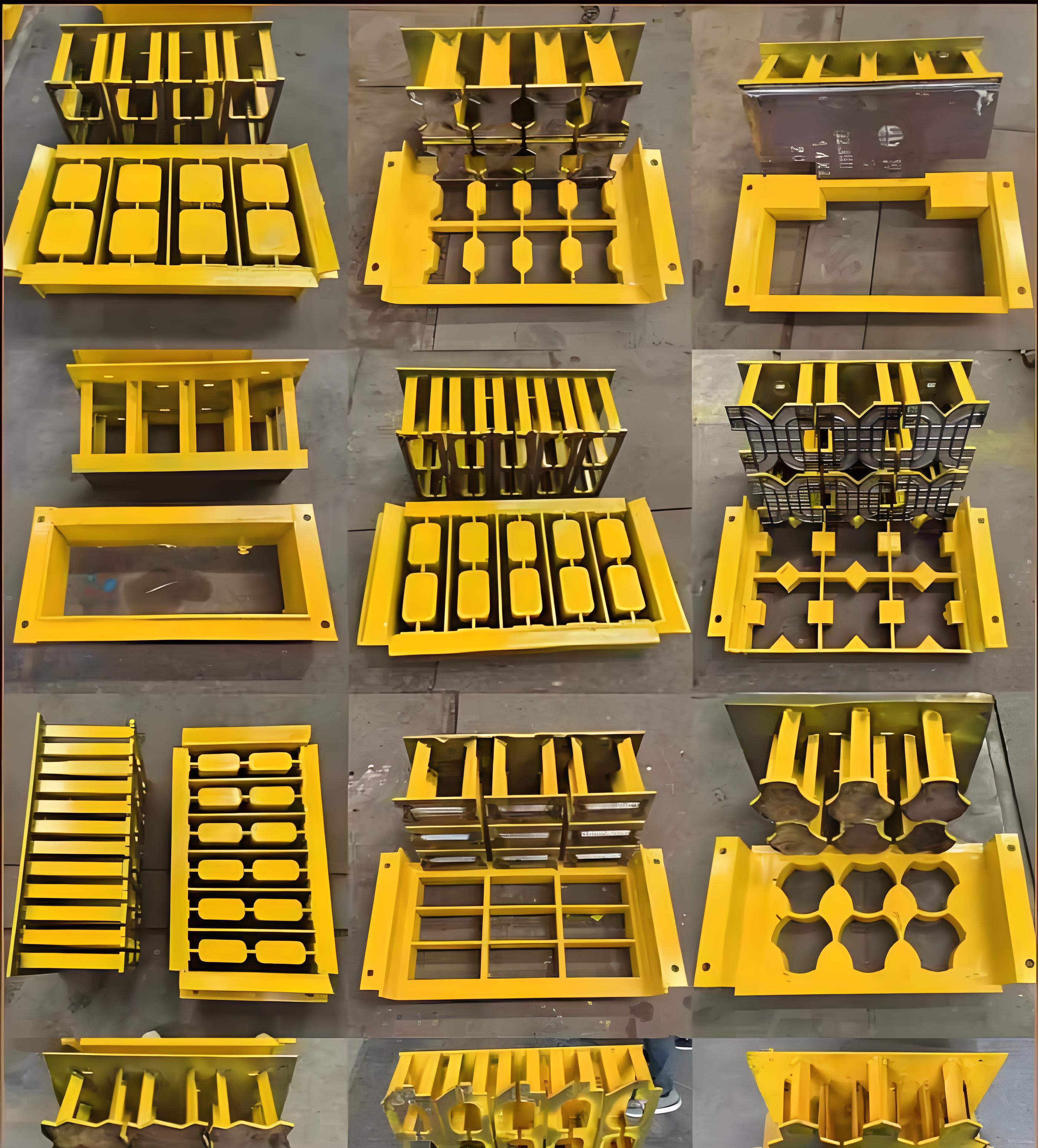

Mould

1 unit

6

JW350 Pan Mixer for Mixing Color Material

1 unit

7

6m Belt Conveyor for Color Material

1 pcs

8

Color Material Feeder

1 unit

9

Pallet Stacker

1 unit

10

50T Cement Silo

1 unit

11

D219 Cement Screw Conveyor

1 pcs

12

Automatic Pallet Feeder + Chains

1 unit
