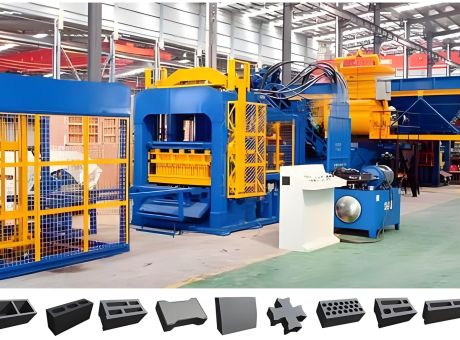

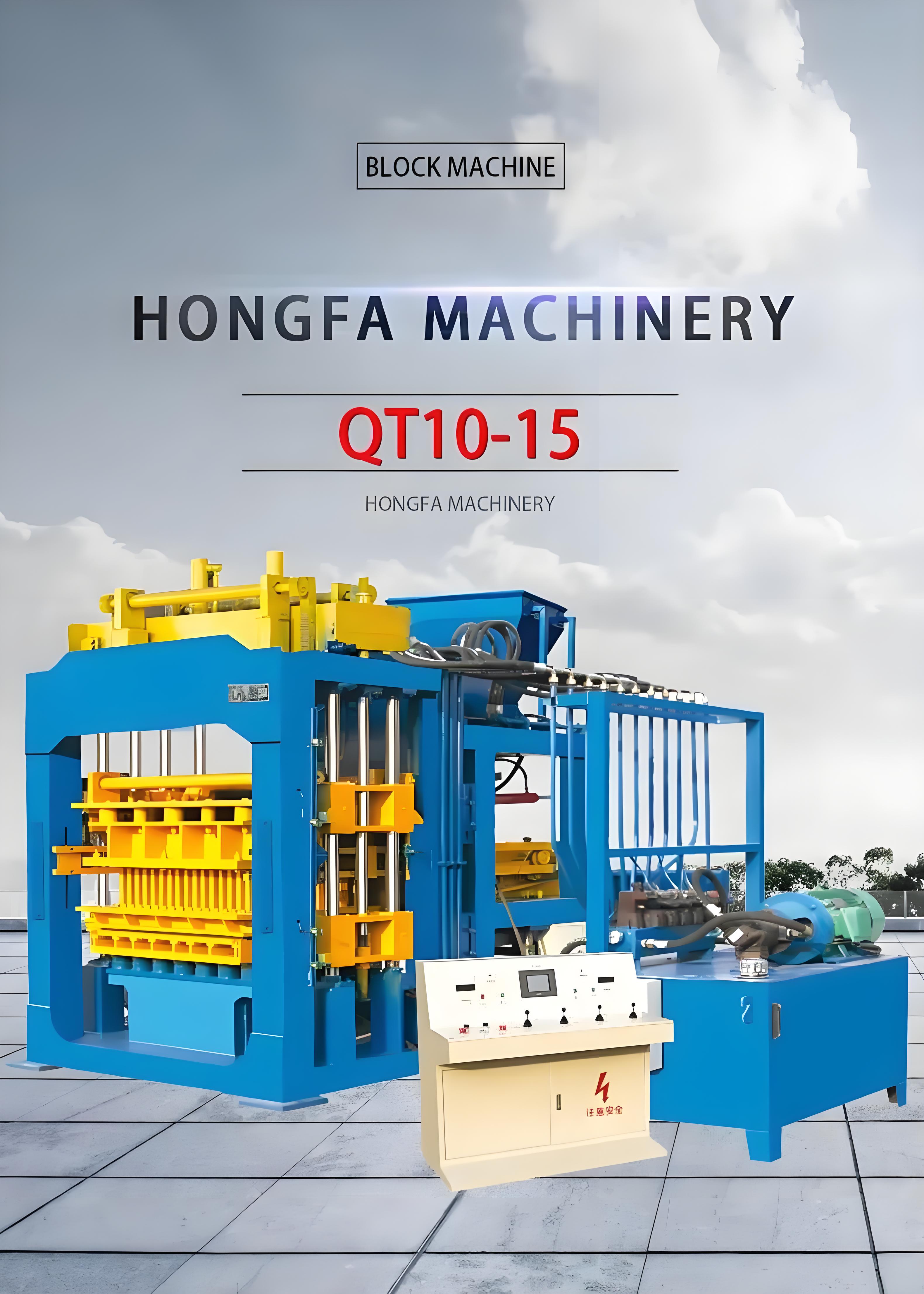

QT10-15 Automatic Block Making Machine

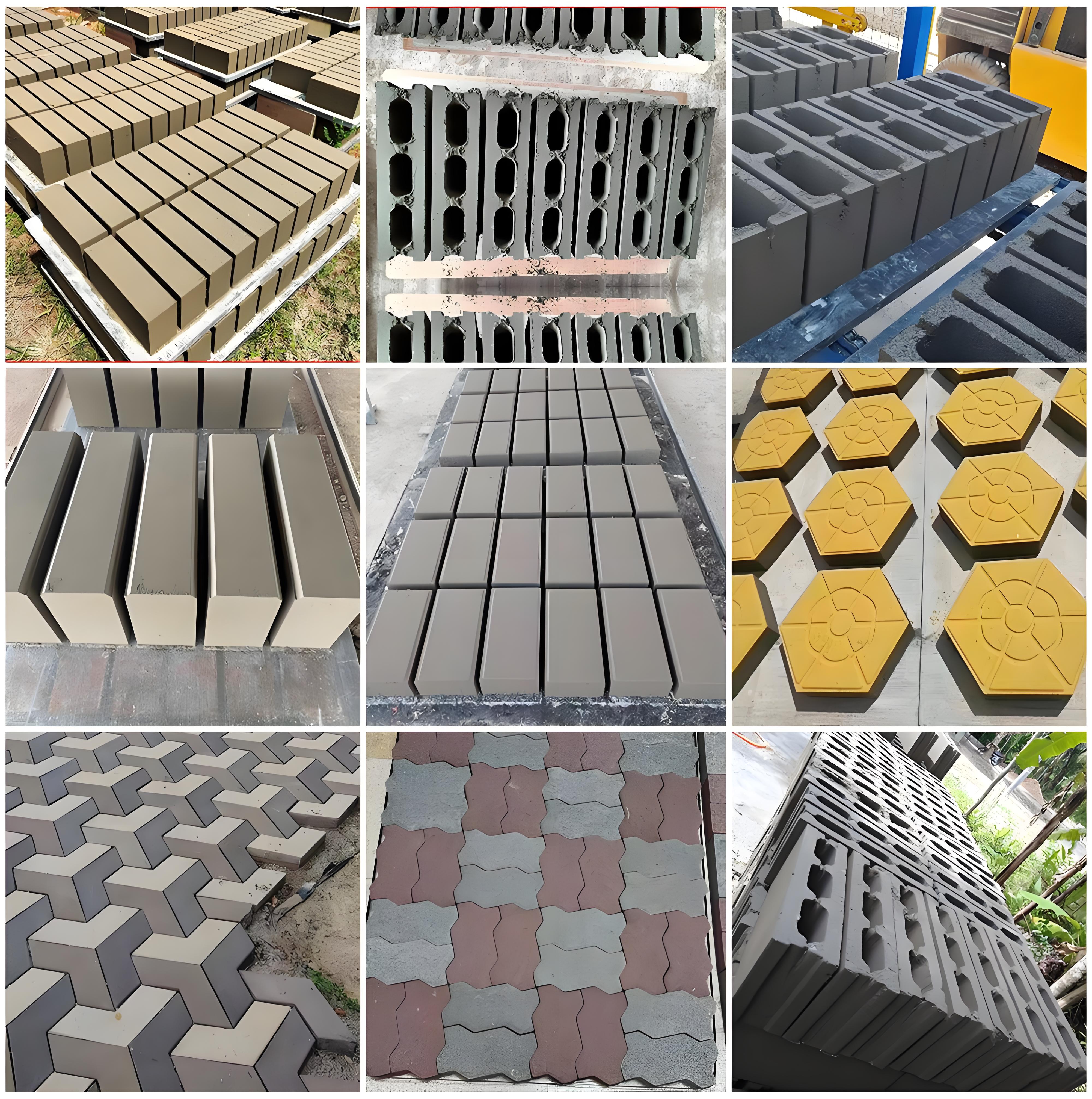

Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：15-25s
Production Capacity (e.g.)：390x190x190mm: 10pcs/mould, 1440-1800pcs/h
Control Mode：Automatic
Block Forming Mode：Platform Vibration + Hydraulic Pressure
Are You Looking For?

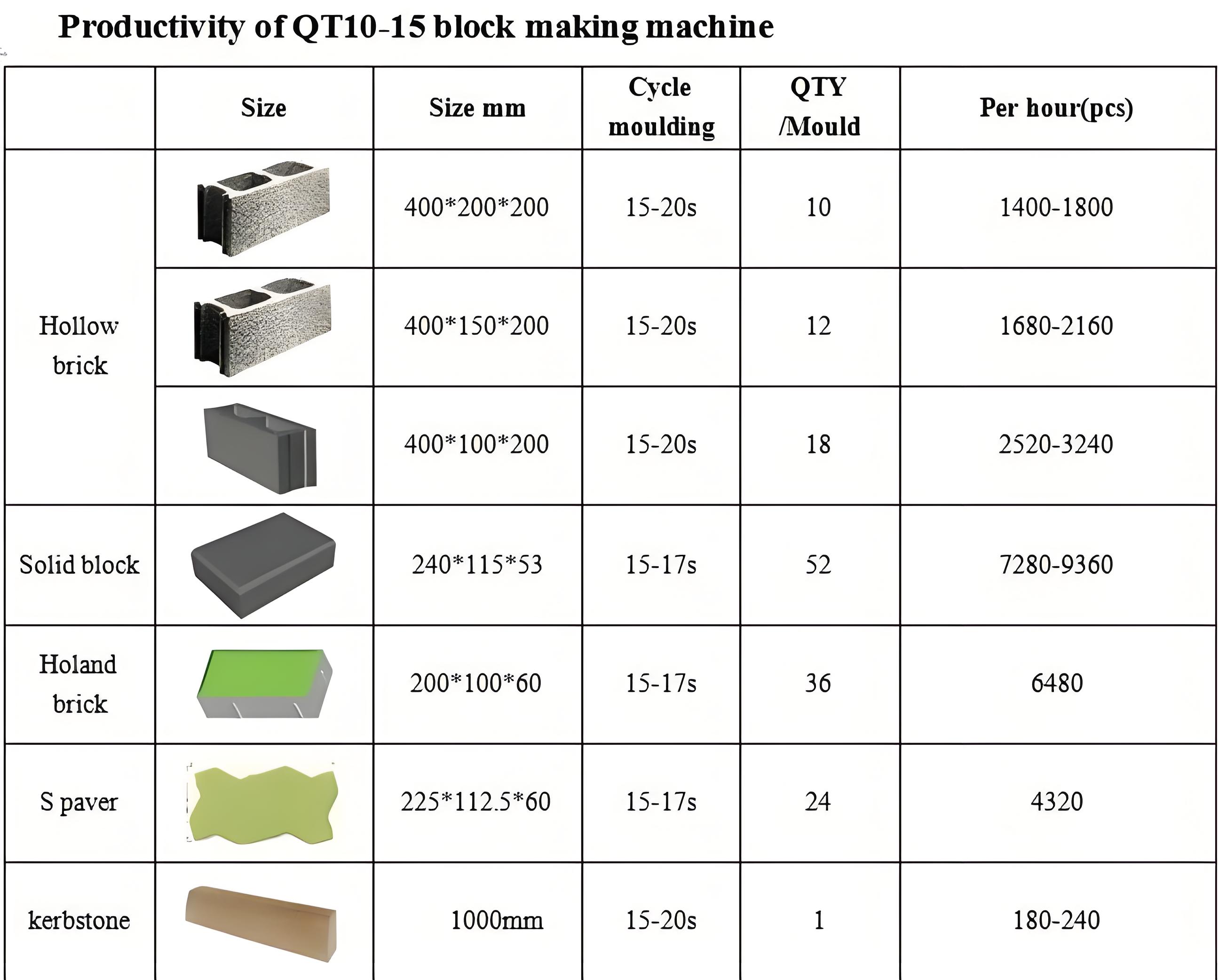

Production Capacity (block shapes and size can be customized)
Main Specifications
No. | Item | Specification |
1 | Block Forming Mode | Platform Vibration + Hydraulic Pressure |
2 | Effective Forming Area | 1100 ×970 mm |
3 | Vibration Force | 680 kN |
4 | Vibration Frequency | 2800-4500 rpm |
5 | Rated Pressure | 21 Mpa |
6 | Production Cycle Time | 15-25 seconds |
7 | Main Motors Power | 43.3 kw |
8 | Pallet Size | 1100x950 mm |
9 | Main Machine Size | 9350×2320×2950 mm |
10 | Main Machine Weight | 10800 kg |
11 | Applied Products | Hollow Block, Porous Block, Solid Block, Paving Block, Grass-planting Block, Kerbstone, etc. |

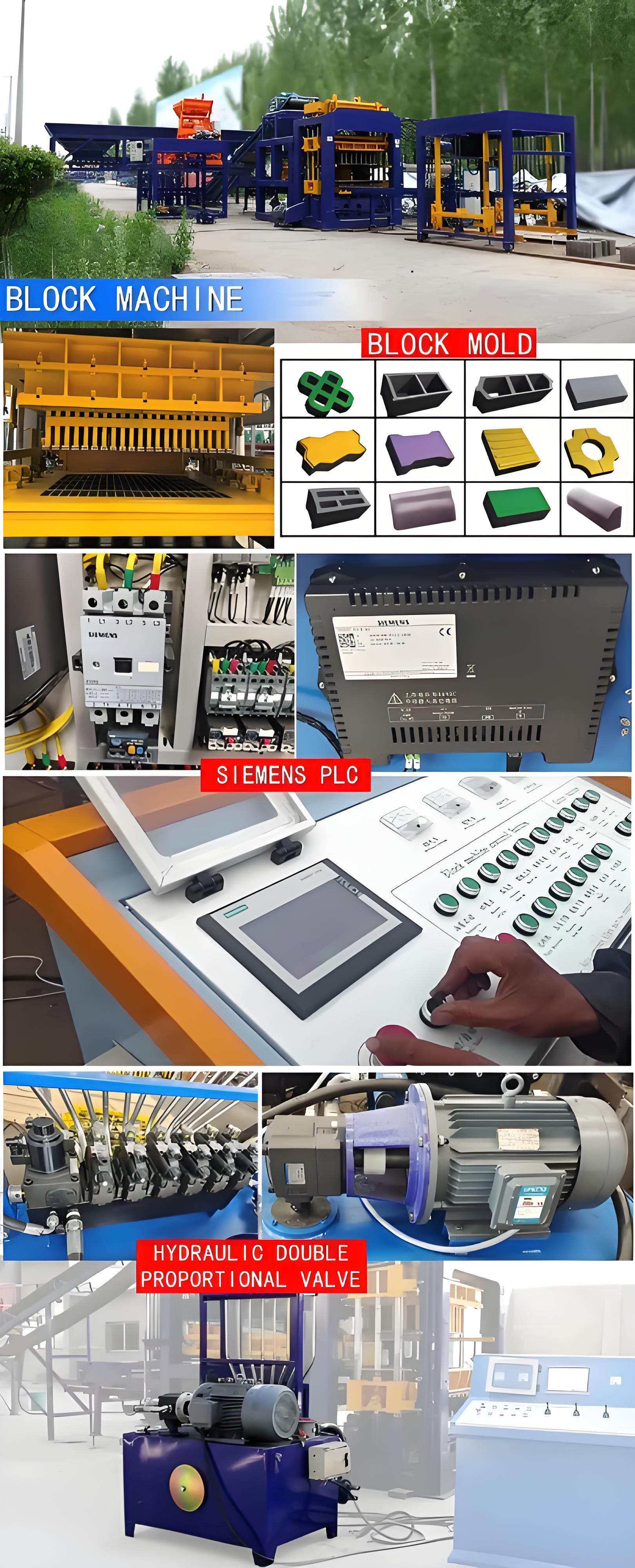

Main Components
No. | Components | Qty. |
1 | PLD1200 Aggregate Batcher | 1 unit |
2 | JS750 Twin-shaft Concrete Mixer | 1 unit |
3 | 8m Belt Conveyor for Raw Material (Double-layers) | 1 pcs |
4 | QT10-15 Block Making Machine | 1 unit |

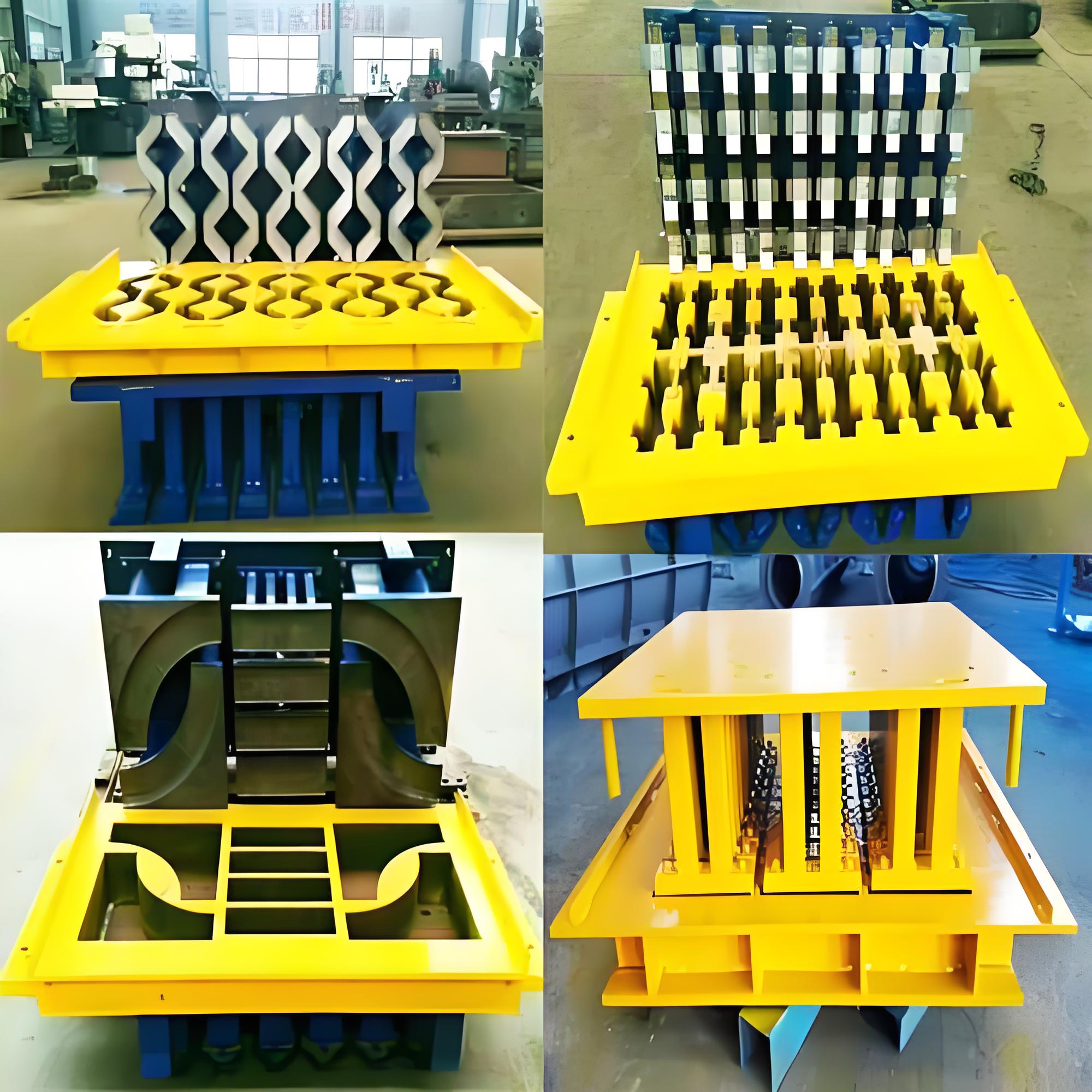

5 | Mould | 1 unit |
6 | JW350 Pan Mixer for Mixing Color Material | 1 unit |
7 | 6m Belt Conveyor for Color Material | 1 pcs |
8 | Color Material Feeder | 1 unit |
9 | Pallet Stacker | 1 unit |
10 | 50T Cement Silo | 1 unit |
11 | D219 Cement Screw Conveyor | 1 pcs |
12 | Automatic Pallet Feeder + Chains | 1 unit |
