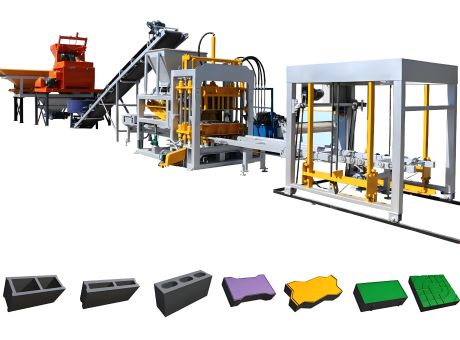

QT6-15 Automatic Block Making Machine
Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：15-25s
Production Capacity (e.g.)：390x190x190mm: 6 pcs/mould, 1080-1350 pcs/h
Control Mode：Automatic
Block Forming Mode：Platform Vibration + Hydraulic Pressure
Are You Looking For?

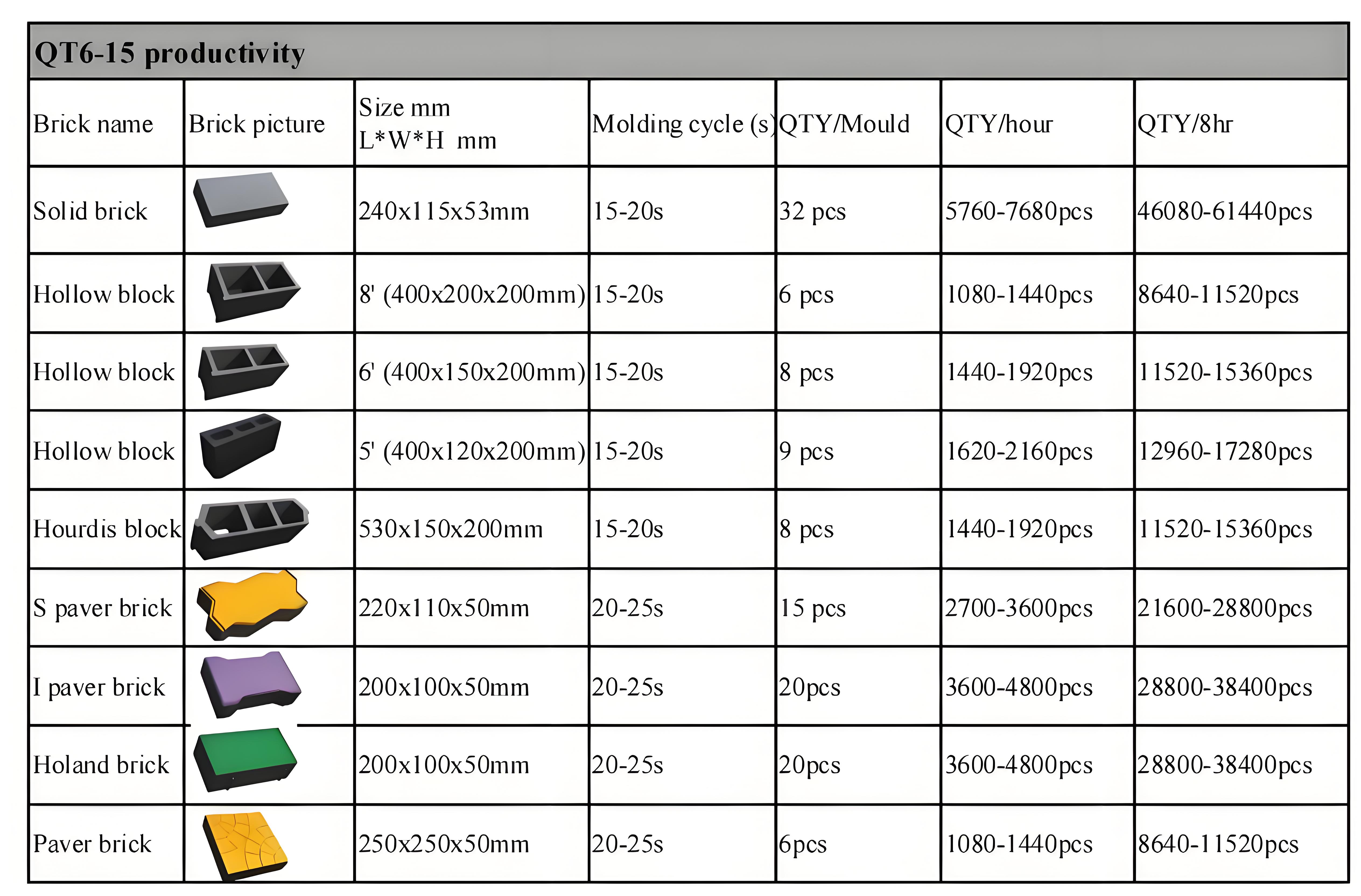

Production Capacity (block shapes and size can be customized)
Main Specifications
No. | Item | Specification |
1 | Block Forming Mode | Platform Vibration + Hydraulic Pressure |
2 | Effective Forming Area | 880 ×750 mm |
3 | Vibration Force | 380 Kn |
4 | Vibration Frequency | 4500-5100 rpm |
5 | Rated Pressure | 16 Mpa |
6 | Production Cycle Time | 15-25 seconds |
7 | Main Motors Power | 31.95 kw |
8 | Pallet Size | 850x680 mm |
9 | Main Machine Size | 7100x1500x3000 mm |
10 | Main Machine Weight | 6200 kg |
11 | Applied Products | Hollow Block, Porous Block, Solid Block, Paving Block, Grass-planting Block, Kerbstone, etc. |
Main Components
No. | Components | Qty. |
1 | PLD1200 Aggregate Batcher | 1 unit |
2 | JS500 Twin-shaft Concrete Mixer | 1 unit |
3 | 8m Belt Conveyor for Raw Material | 1 pcs |
4 | QT4-15 Block Making Machine | 1 unit |

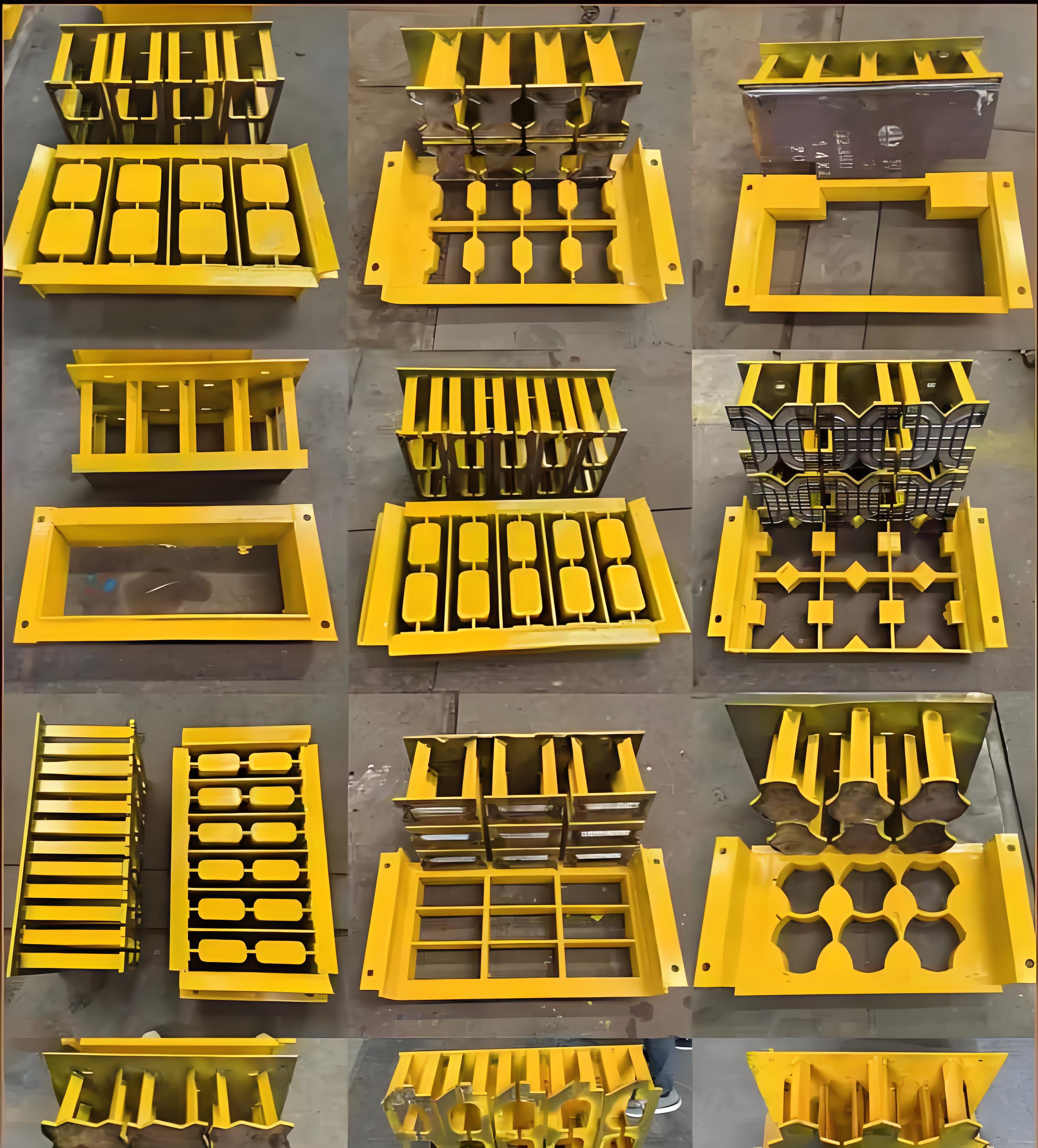

5 | Mould | 1 unit |
6 | JW350 Pan Mixer for Mixing Color Material | 1 unit |
7 | 6m Belt Conveyor for Color Material | 1 pcs |
8 | Color Material Feeder | 1 unit |
9 | Pallet Stacker | 1 unit |
