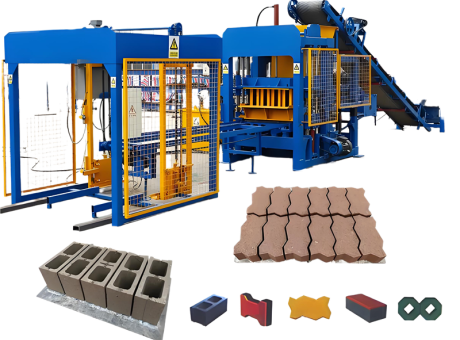

QT4-15 Automatic Hydraulic Block Making Machine

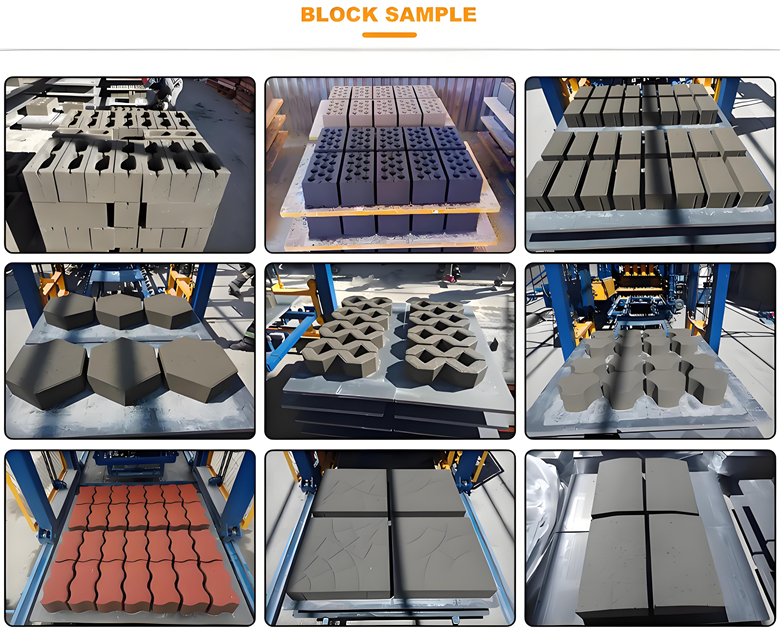

Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：15-25s
Production Capacity (e.g.)：400x200x200mm: 4pcs/mould, 7000pcs/day(8 hours)
Block Forming Mode：Platform Vibration + Hydraulic Pressure
Control Mode：Automatic
Product Detail：Please see the following page
Are You Looking For?

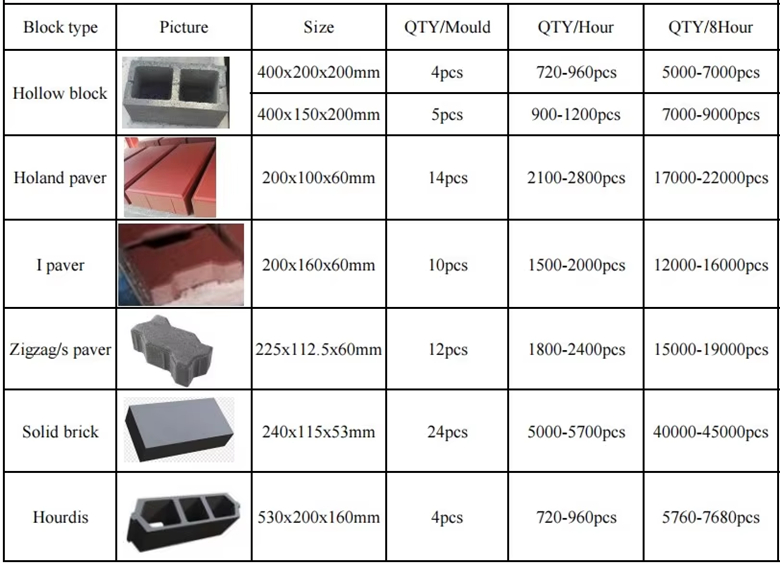

Production Capacity (block shape and size can be customized)
Main Specifications
No. | Item | Specification |
1 | Block Forming Mode | Platform Vibration + Hydraulic Pressure |
2 | Vibration Force | 380 kN |
3 | Vibration Frequency | 4600 rpm |
4 | Rated Pressure | 16 Mpa |
5 | Production Cycle Time | 15-20 seconds |
6 | Main Motors Power | 28 kw |
7 | Pallet Size | 1020x570 mm |
8 | Main Machine Size | 7100x1600x2610 mm |
9 | Main Machine Weight | 4500 kg |
10 | Applied Products | Hollow/Porous/Solid/Paving/Grass-planting Block, Kerbstone, etc. |
