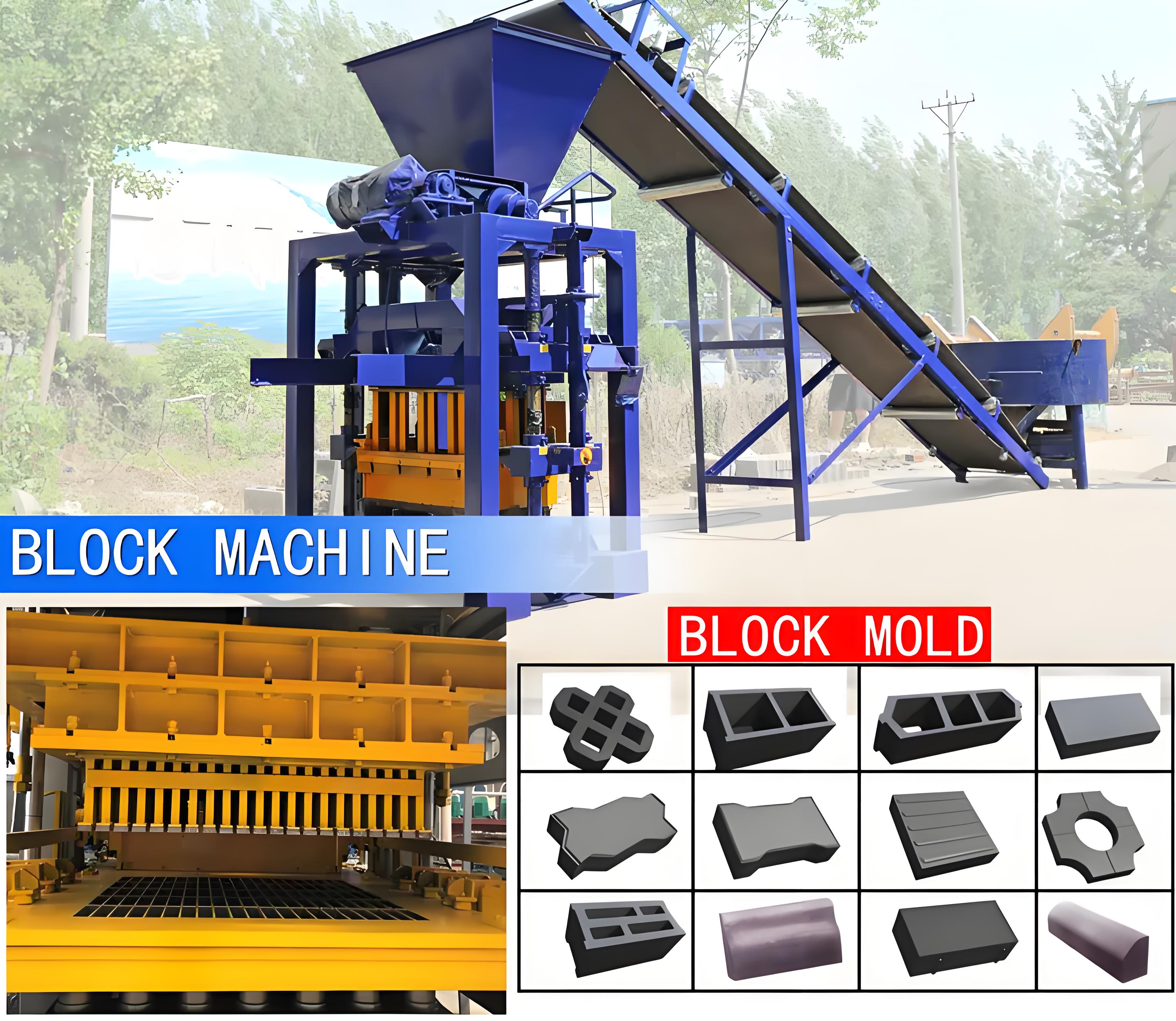

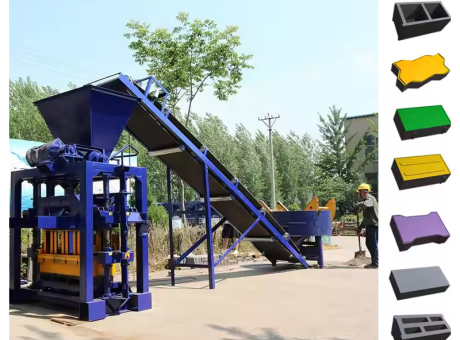

QTJ4-35 Semi-auto Block Making Machine
Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：35
Production Capacity (e.g.)：390x190x190mm: 4pcs/mould, 3280pcs/day(8 hours)
Control Mode：Semi-automatic
Block Forming Mode：Platform Vibration
Are You Looking For?

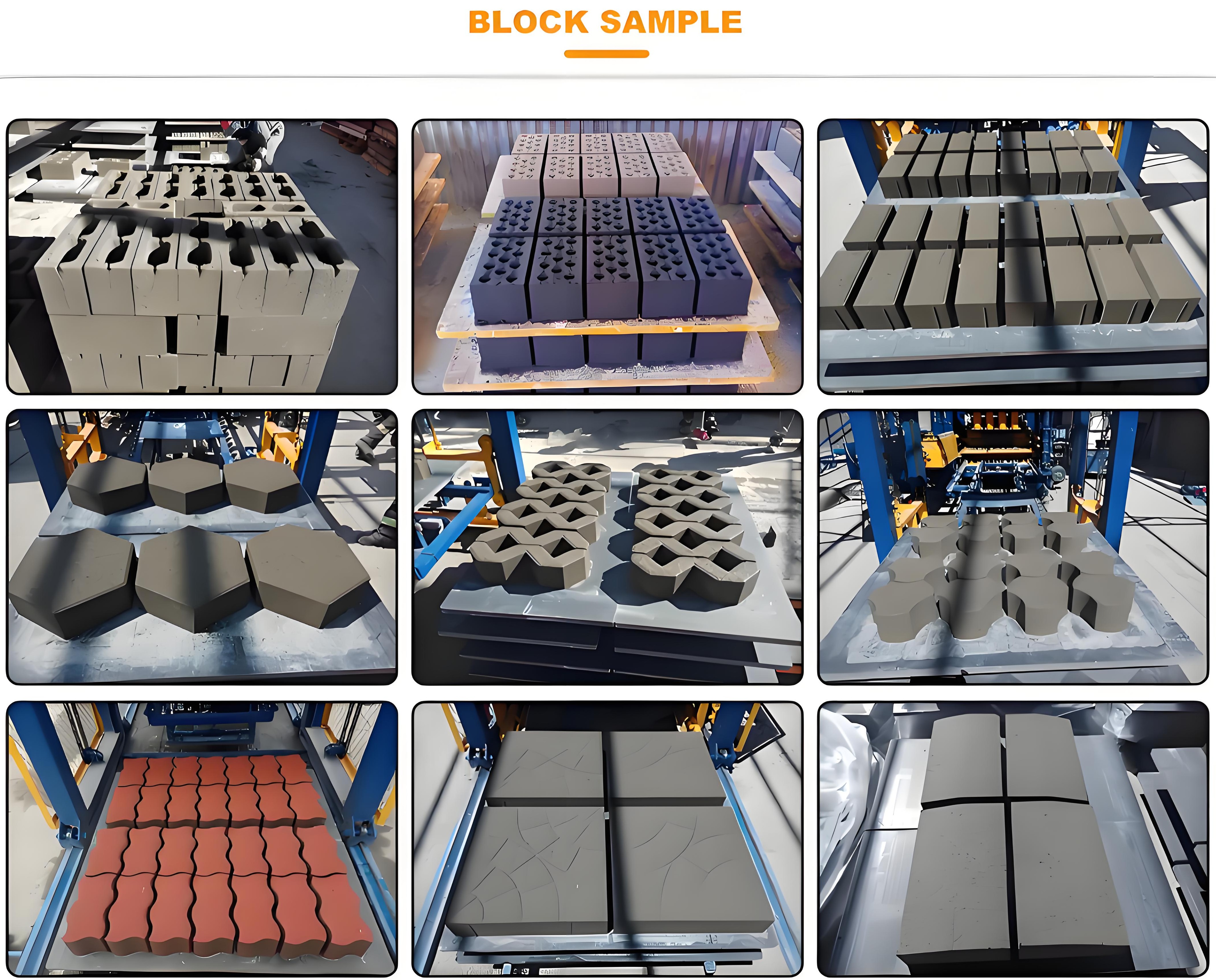

Production Capacity (block shapes and size can be customized)
Block Type | Block Sample | Block Size | Cycle Time | Qty. / Mould | Qty. / Hour |
Hollow Block
|
| 390x190x190mm | 35 s | 4 pcs |
410 pcs
|

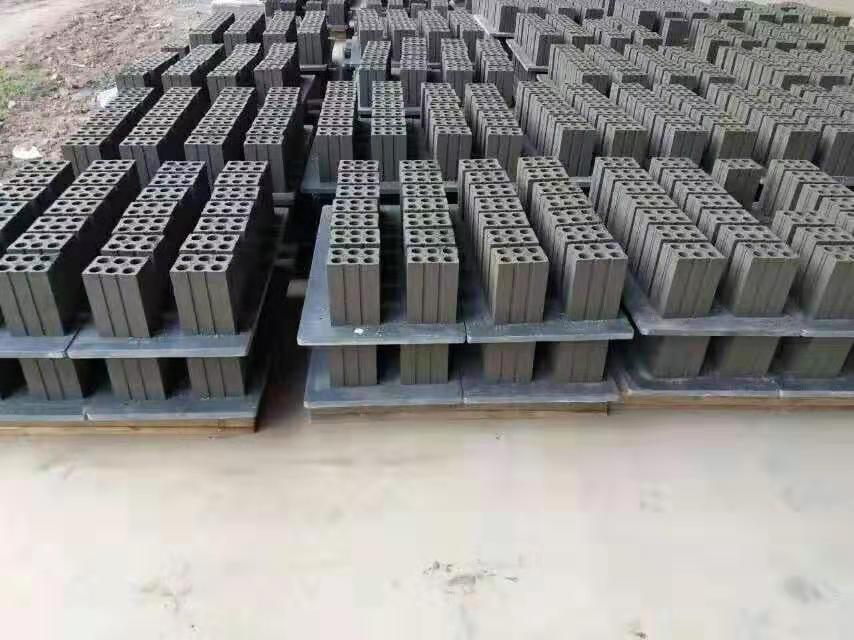

Porous Block |
| 240x115x90mm | 35 s | 14 pcs |
1,440 pcs
|
Solid Block |
| 240x115x53mm | 35 s | 21 pcs |
2,100 pcs
|
Paving Block |
| 225x112.5x60mm | 35 s | 9 pcs | 900 pcs |
Main Specifications
No. | Item | Specification |
1 | Block Forming Mode | Platform Vibration |
2 | Vibration Force | 28 KN |
3 | Vibration Frequency | 2800 rpm |
4 | Production Cycle Time | 35 seconds |
5 | Main Motors Power | 9.7 kw |
6 | Pallet Size | 850x450 mm |
7 | Main Machine Size | 2050x1660x1900 mm |
8 | Applied Products | Hollow Block, Porous Block, Solid Block, Paving Block, Grass-planting Block, Kerbstone, etc. |
Main Components
No. | Components | Qty. |
1 | JW350 Pan Mixer | 1 unit |
2 | 6m Belt Conveyor | 1 pcs |
3 | QTJ4-35 Main Machine | 1 unit |

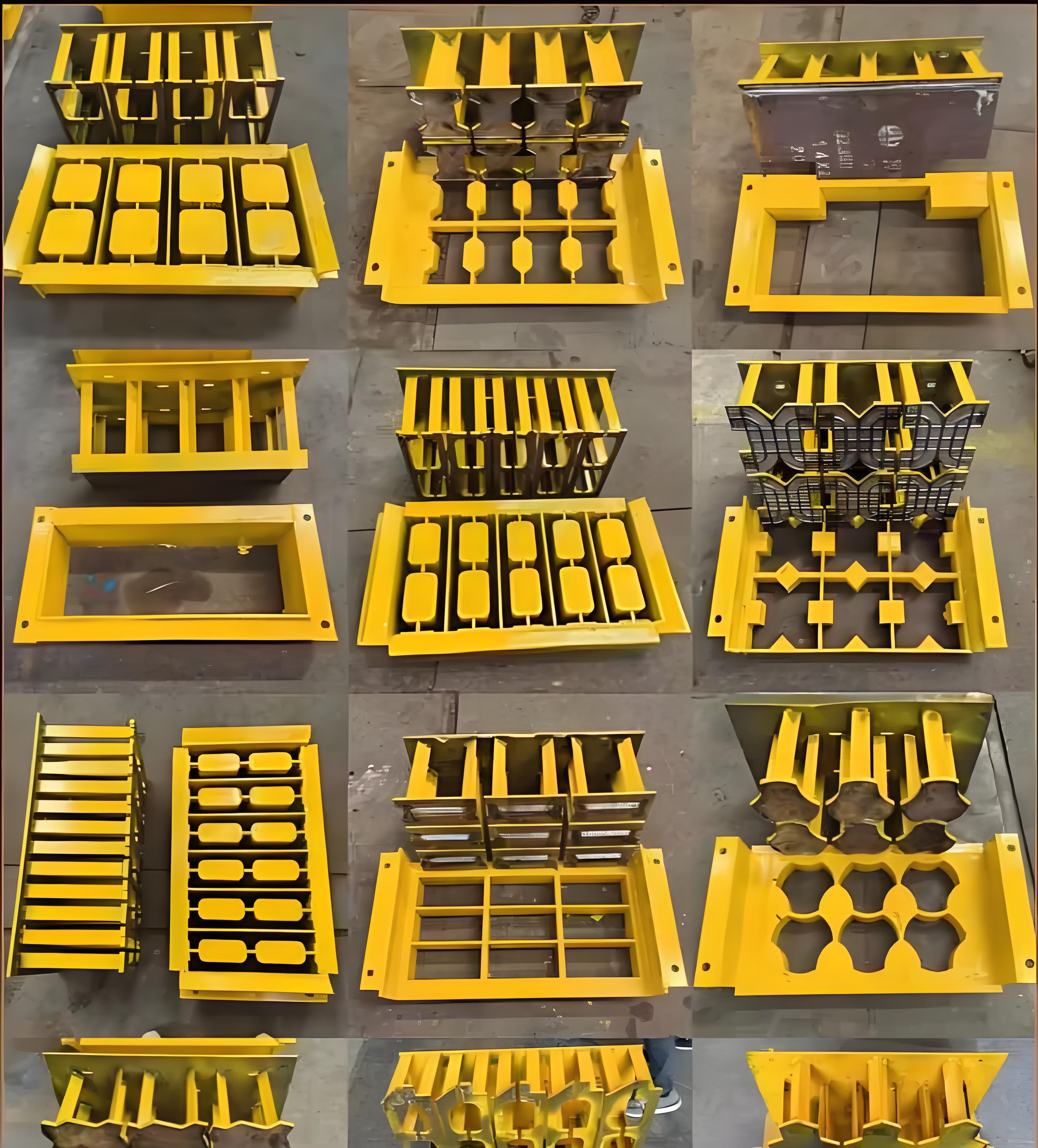

4 | Mould | 1 unit |
