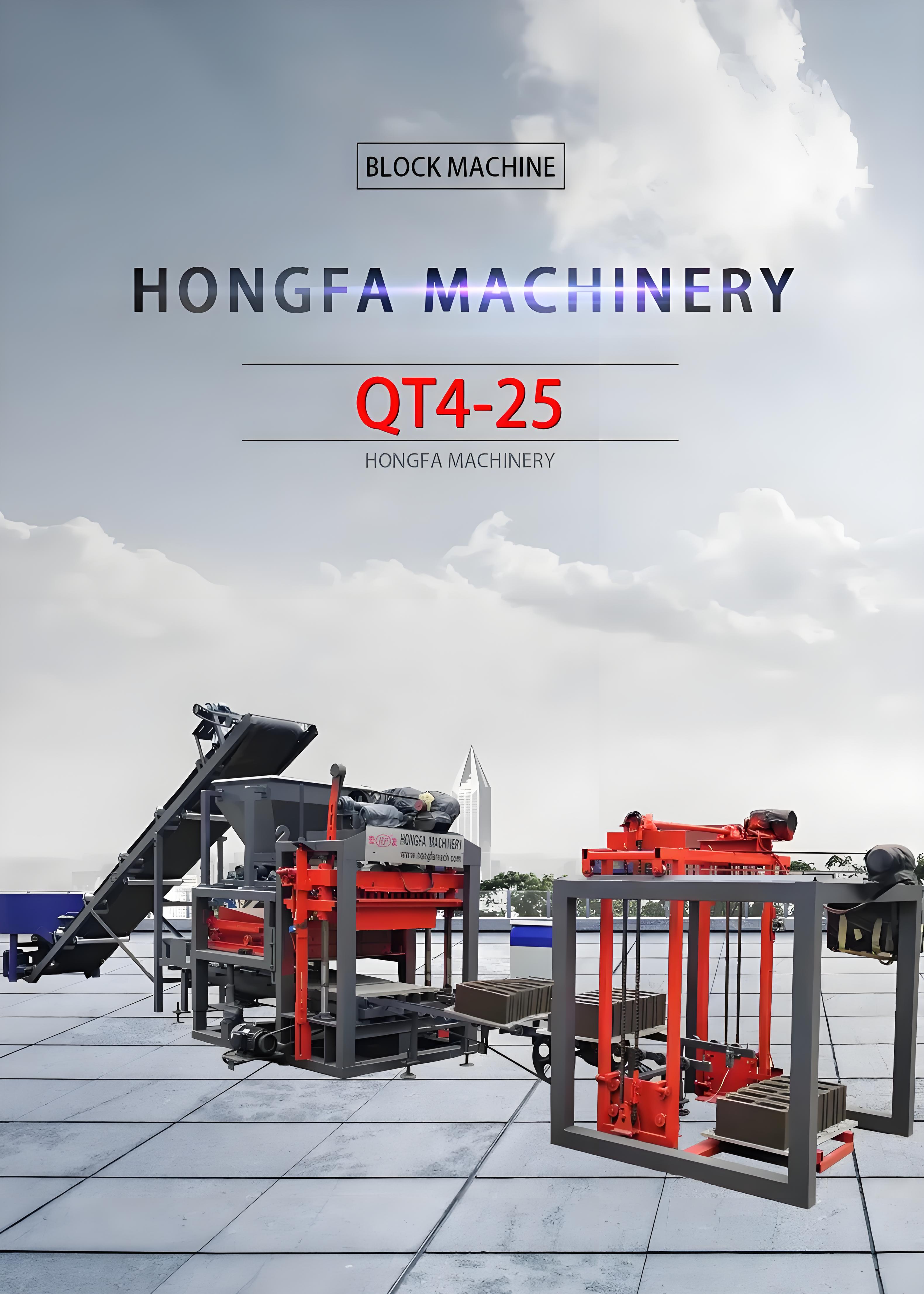

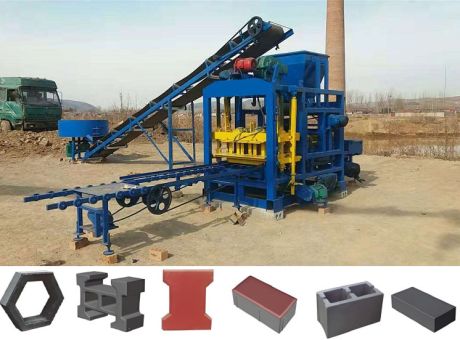

QTJ4-25 Auto Block Making Machine
Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：15-25s
Production Capacity (e.g.)：390x190x190mm: 4pcs/mould, 7680pcs/day(8 hours)
Control Mode：Automatic
Block Forming Mode：Platform Vibration
Are You Looking For?
Production Capacity (block shapes and size can be customized)

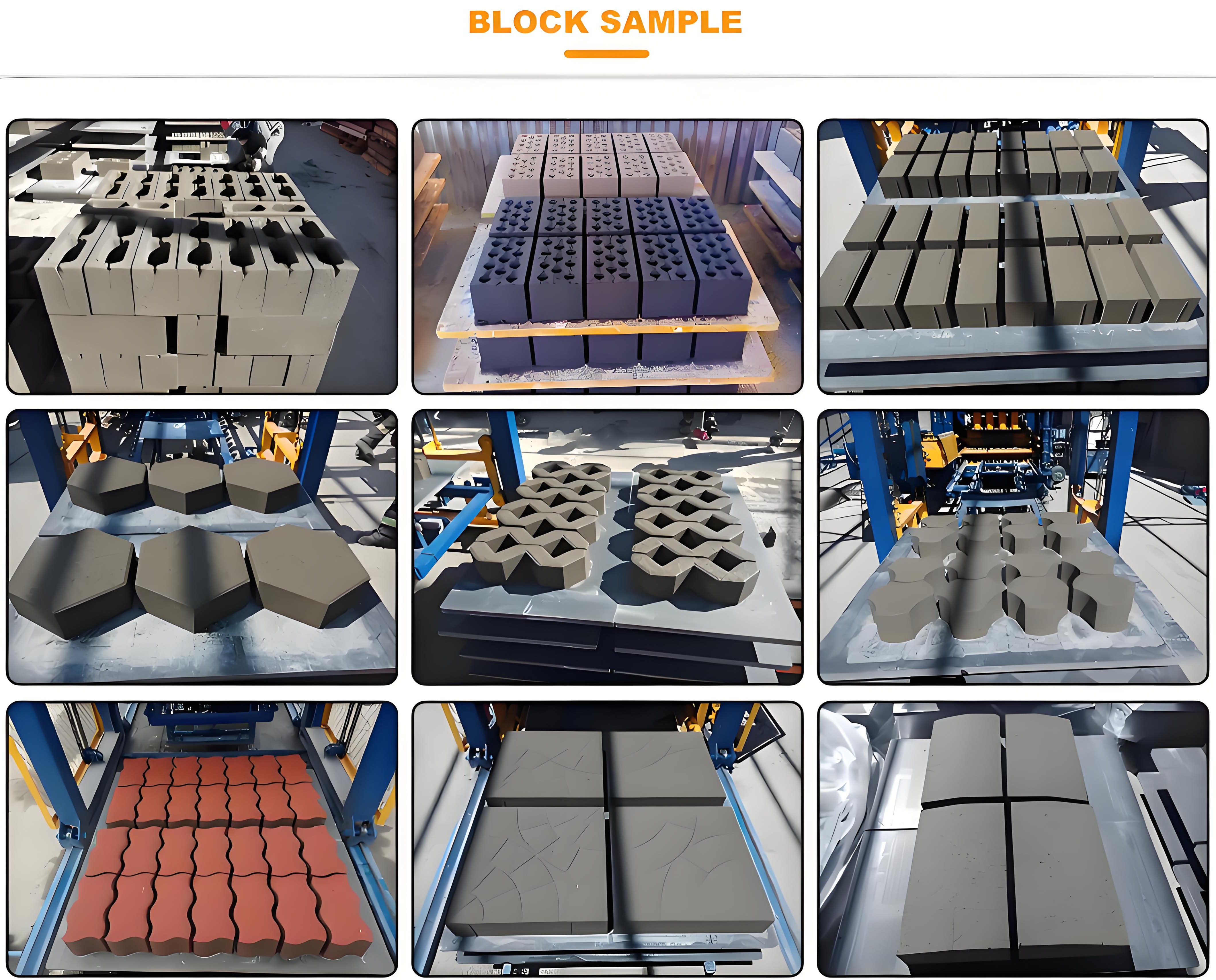

Block Type | Block Sample | Block Size | Cycle Time | Qty. / Mould | Qty. / Hour |

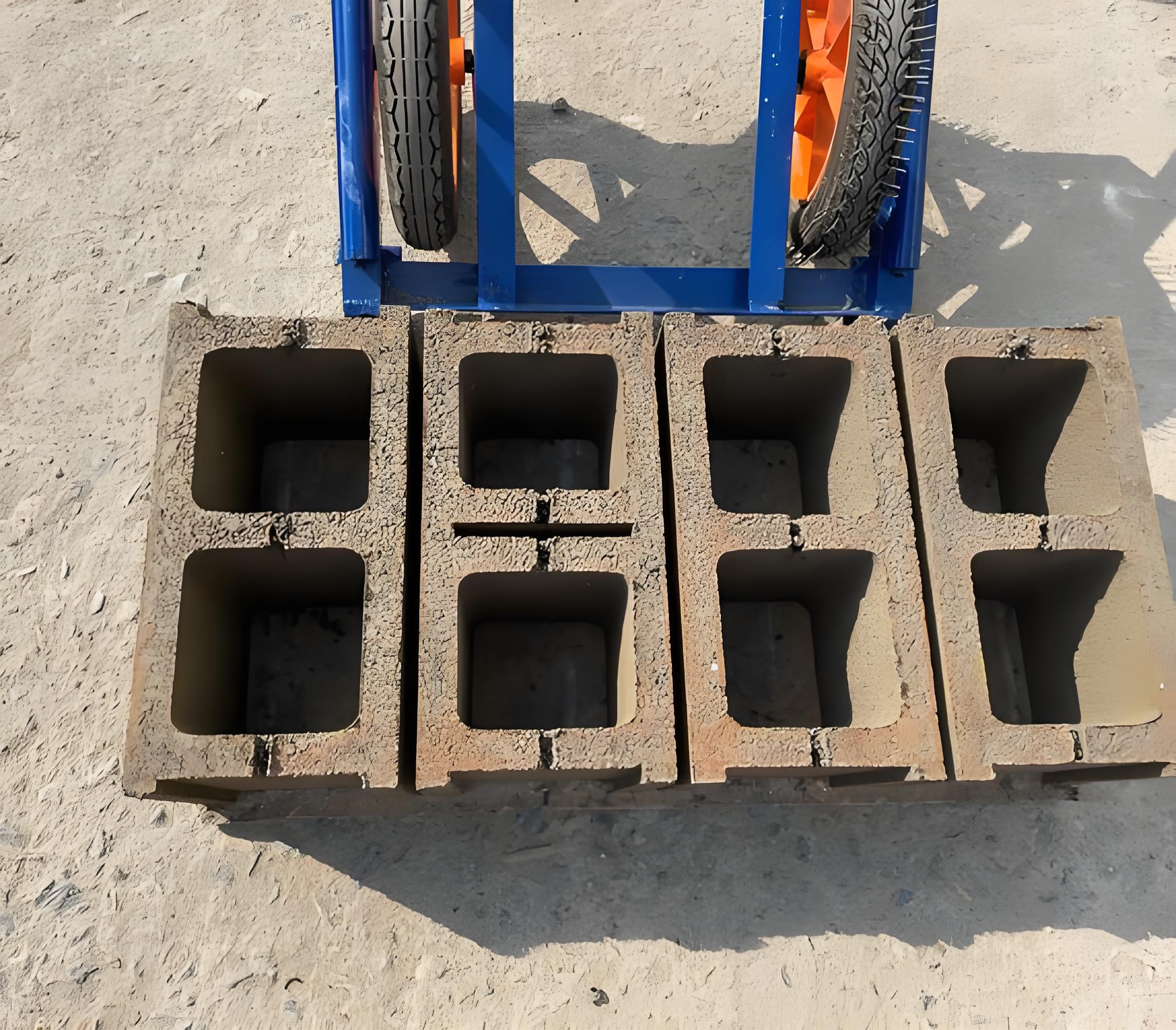

Hollow Block
|
| 390x190x190mm | 15 s | 4 pcs |
960 pcs
|

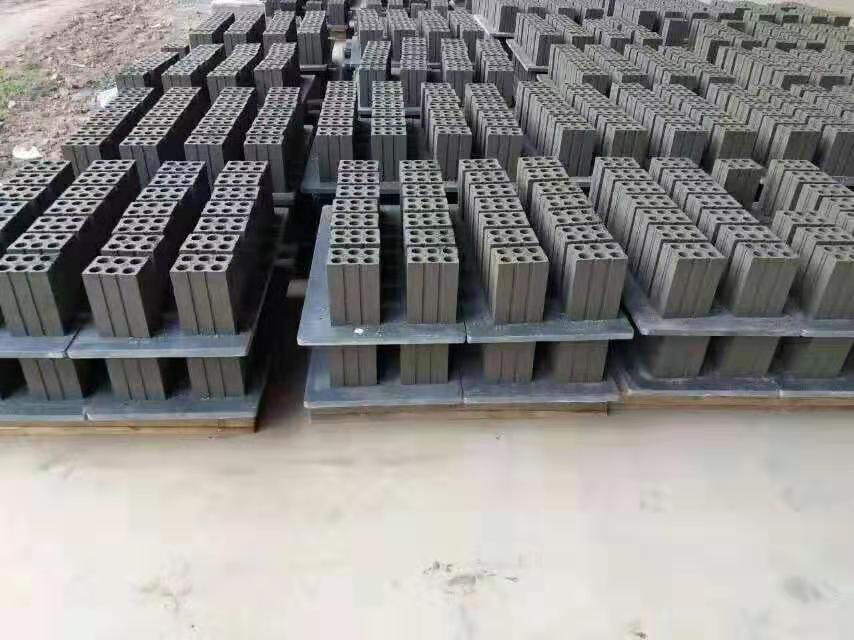

Porous Block |
| 240x115x90mm | 15 s | 12 pcs |
2,880 pcs
|
Solid Block |
| 240x115x53mm | 15 s | 26 pcs |
6,240 pcs
|
Paving Block |
| 240x112.5x60mm | 15 s | 14 pcs | 3,360 pcs |
Main Specifications
No. | Item | Specification |
1 | Block Forming Mode | Platform Vibration |
2 | Vibration Force | 380 KN |
3 | Vibration Frequency | 2800-4500 rpm |
4 | Production Cycle Time | 15-25 seconds |
5 | Main Motors Power | 20.75 kw |
6 | Pallet Size | 850x550 mm |
7 | Main Machine Size | 6400x1500x2700 mm |
8 | Main Machine Weight | 2200 kg |
9
| Applied Products
| Hollow/Solid/Paving/Porous/Grass-planting Blocks, Kerbstone, etc. |
Main Components
No. | Components | Qty. |
1 | JW350 Pan Mixer | 1 unit |
2 | 6m Belt Conveyor | 1 pcs |
3 | QTJ4-25 Main Machine | 1 unit |
4 | Pallet Feeder | 1 unit |
5 | Block Conveyor | 1 unit |

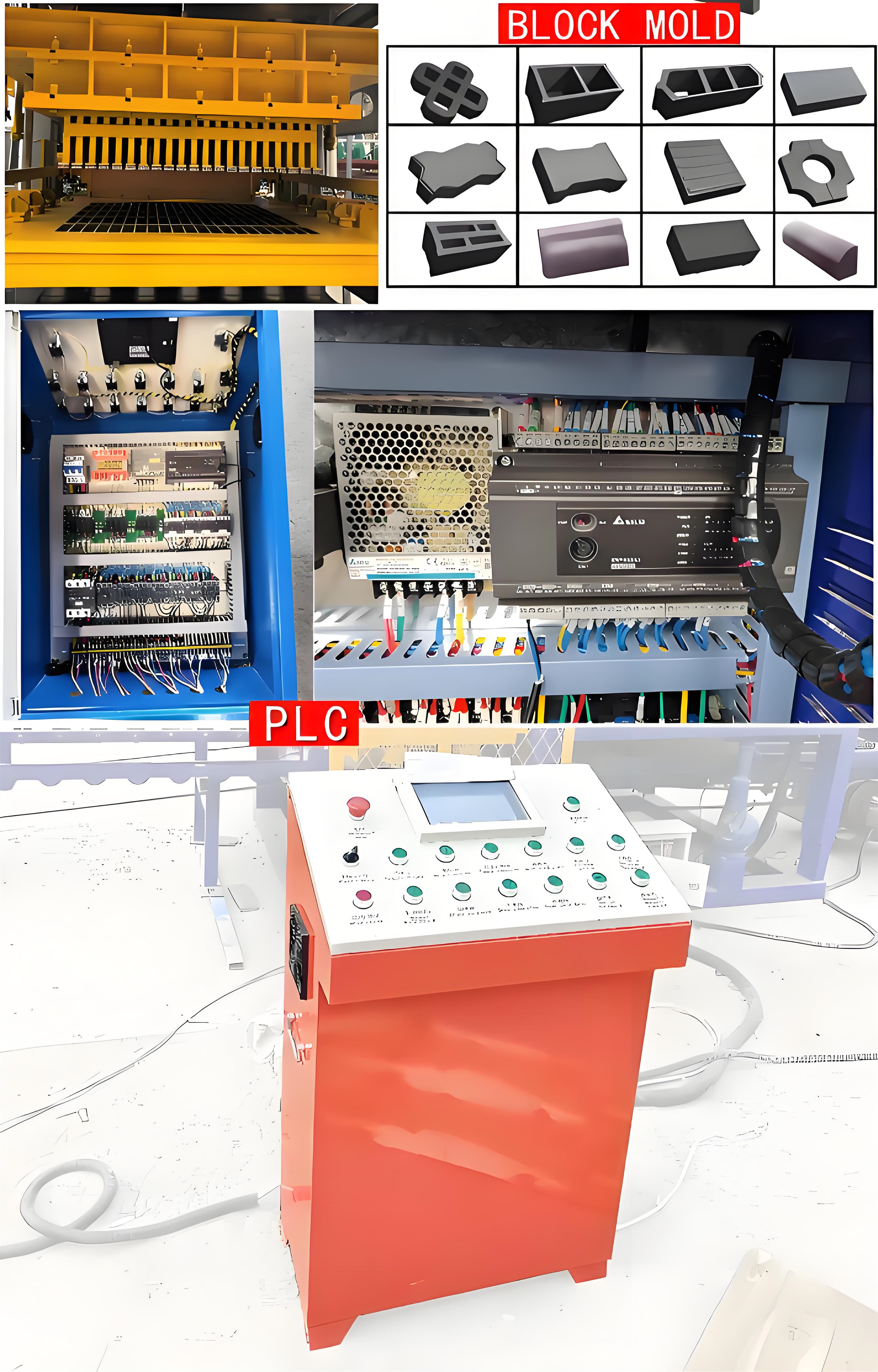

6 | Control Cabinet | 1 unit |

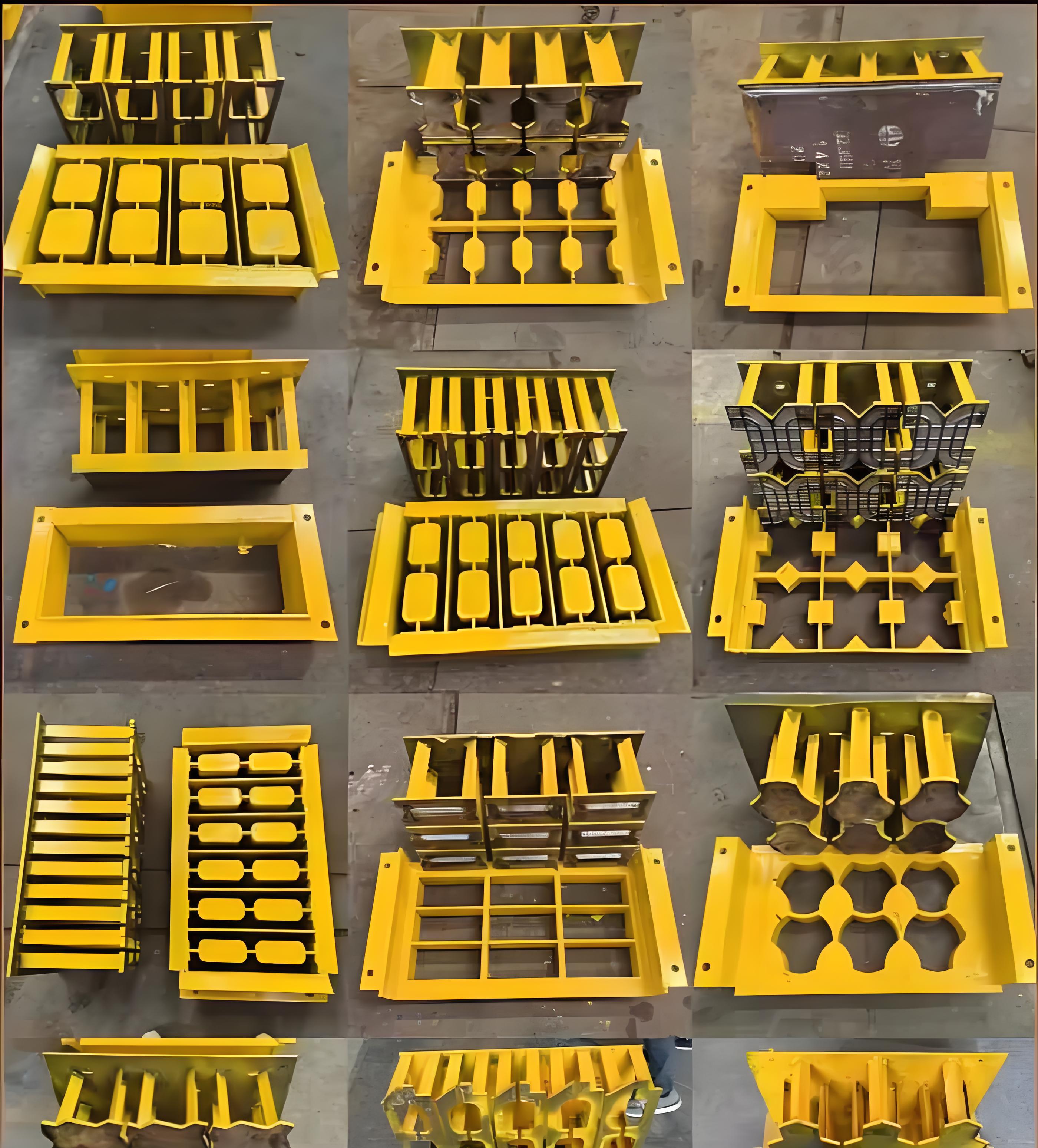

7 | Mould | 1 unit |
