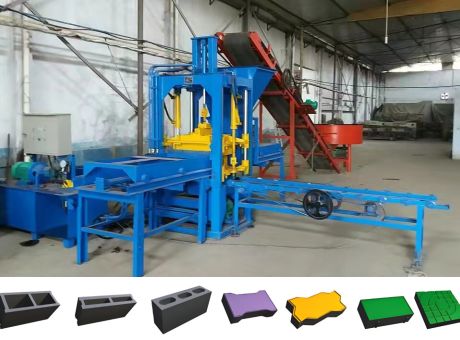

QTF3-20 Semi-auto Block Making Machine
Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：20-25s
Production Capacity (e.g.)：390x190x190mm: 3pcs/mould, 432-540pcs/h
Control Mode：Semi-automatic
Block Forming Mode：Platform Vibration + Hydraulic Pressure
Are You Looking For?

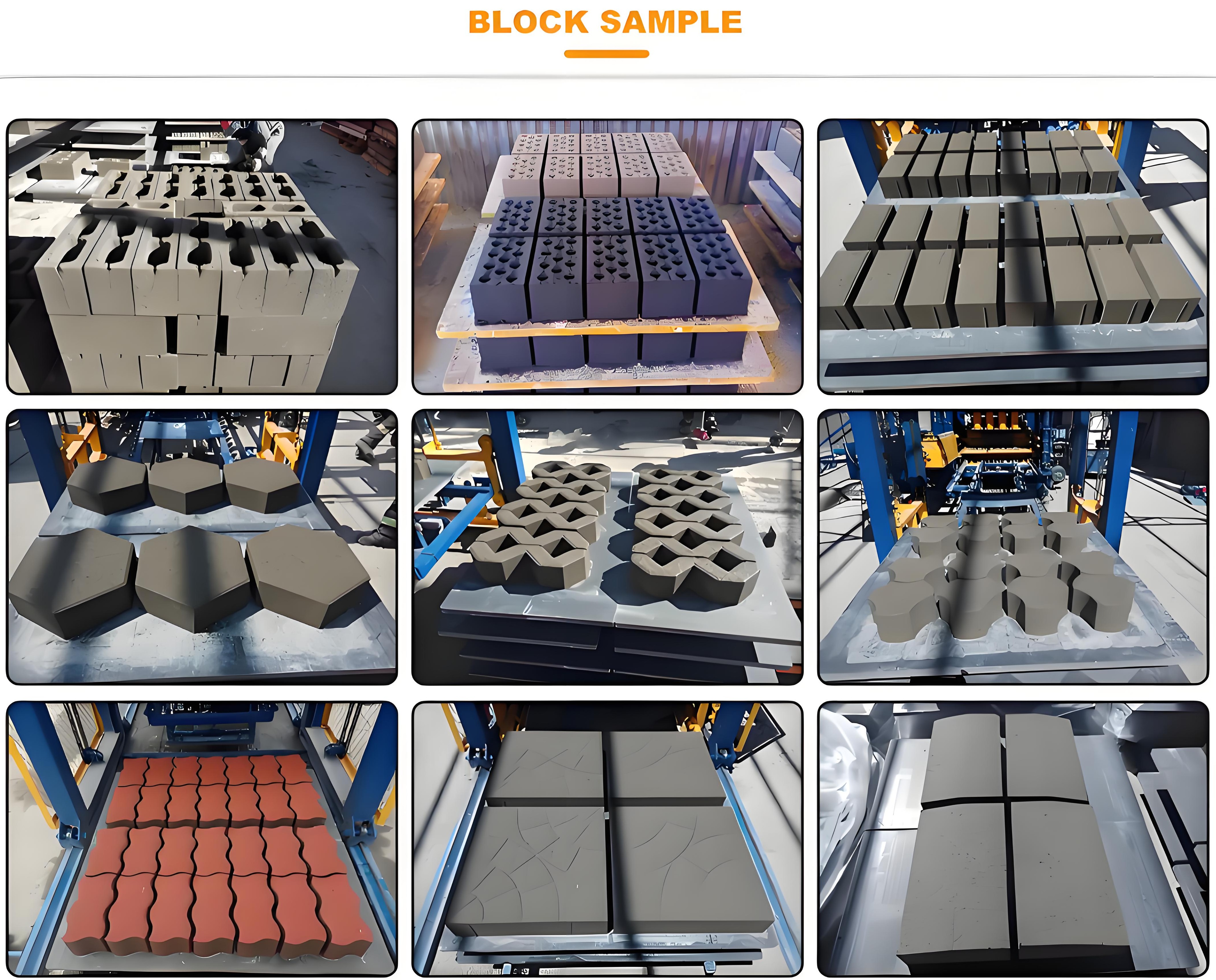

Production Capacity (block shapes and size can be customized)
Block Type | Block Sample | Block Size | Cycle Time | Qty. / Mould | Qty. / Hour |
Hollow Block
| | 390x190x190mm | 20 s | 3 pcs | 540 pcs |
Solid Block | | 200x100x60mm | 20 s | 10 pcs | 1,800 pcs |
Paving Block |
| 225x112.5x60mm | 20 s | 8 pcs | 1,440 pcs |
Main Specifications
No. | Item | Specification |
1 | Block Forming Mode | Platform Vibration + Hydraulic Pressure |
2 | Vibration Force | 22 Kn |
3 | Vibration Frequency | 4500-5100 rpm |
4 | Rated Pressure | 6.3 Mpa |
5 | Production Cycle Time | 20-25 seconds |
6 | Main Motors Power | 13.24 kw |
7 | Pallet Size | 680x535 mm |
8 | Main Machine Size | 4000×3500×2300 mm |
9 | Main Machine Weight | 3000 kg |
10
| Applied Products
| Hollow Block, Porous Block, Solid Block, Paving Block, Grass-planting Block, Kerbstone, etc. |

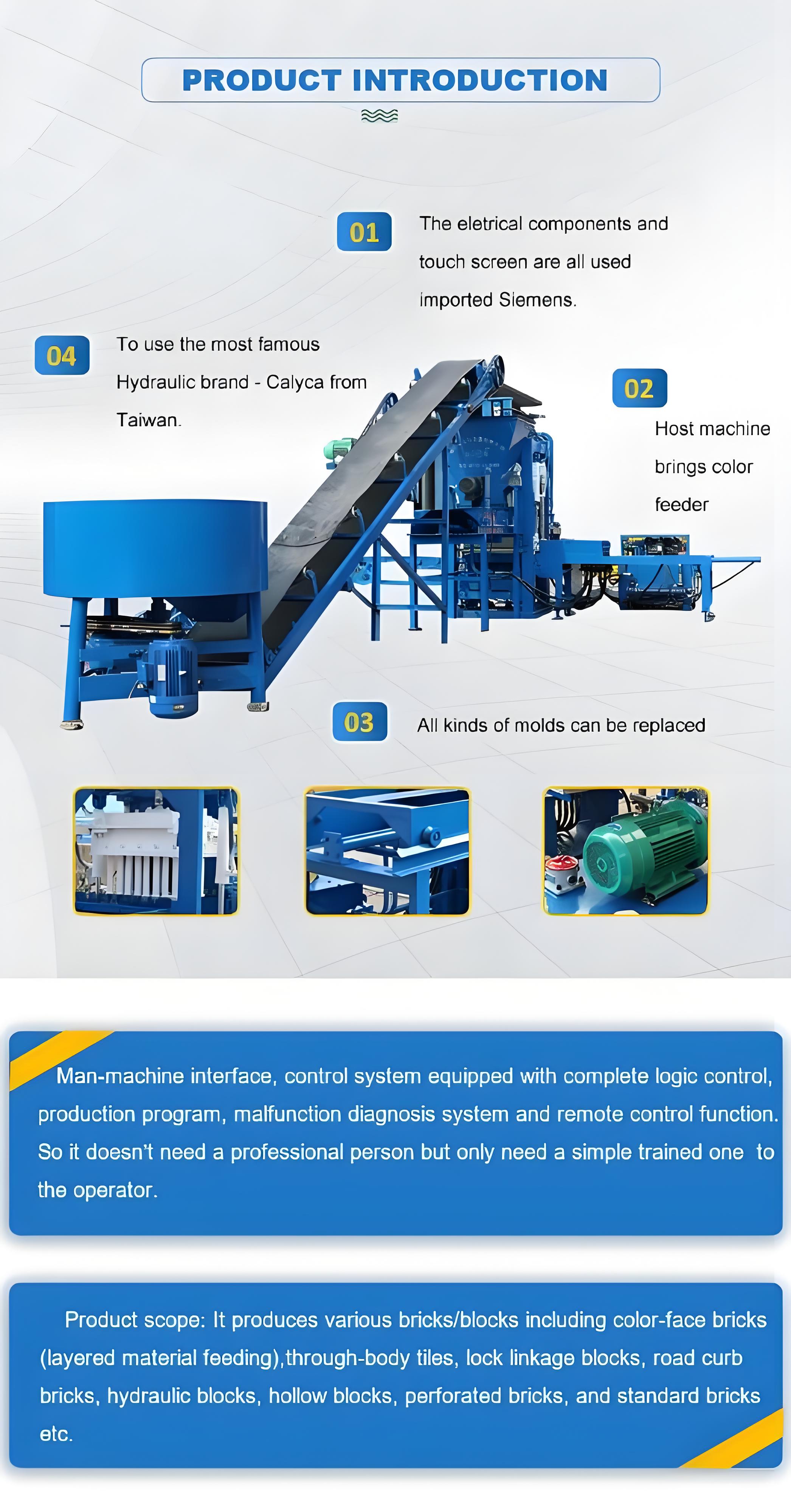

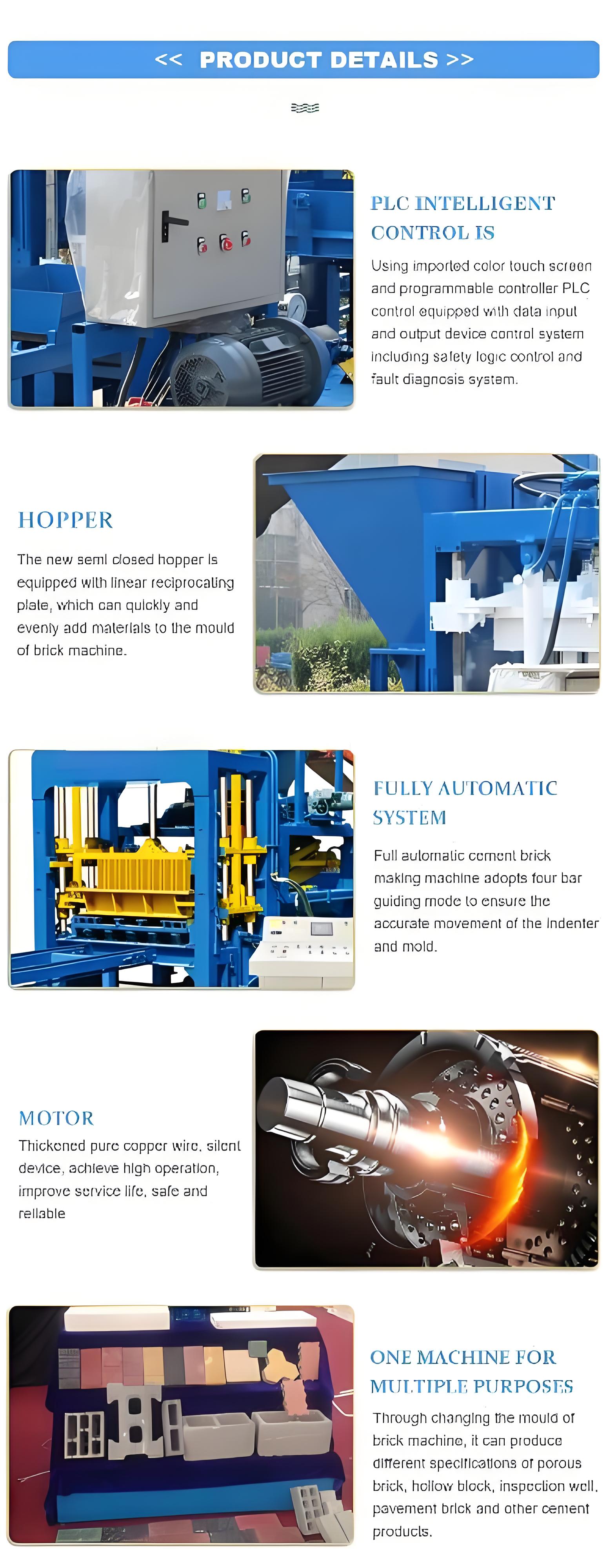

Main Components
No. | Components | Qty. |
1 | JW350 Pan Mixer | 1 unit |
2 | 6m Belt Conveyor | 1 pcs |
3 | QTF3-20 Main Machine | 1 unit |
4 | Pallet Feeder | 1 unit |
5 | Raw Material Feeder | 1 unit |
6 | Color Material Feeder | 1 pcs |
7 | Block Conveyor | 1 unit |
8 | Hydraulic Station + Hydraulic Operating Lever | 1 unit |

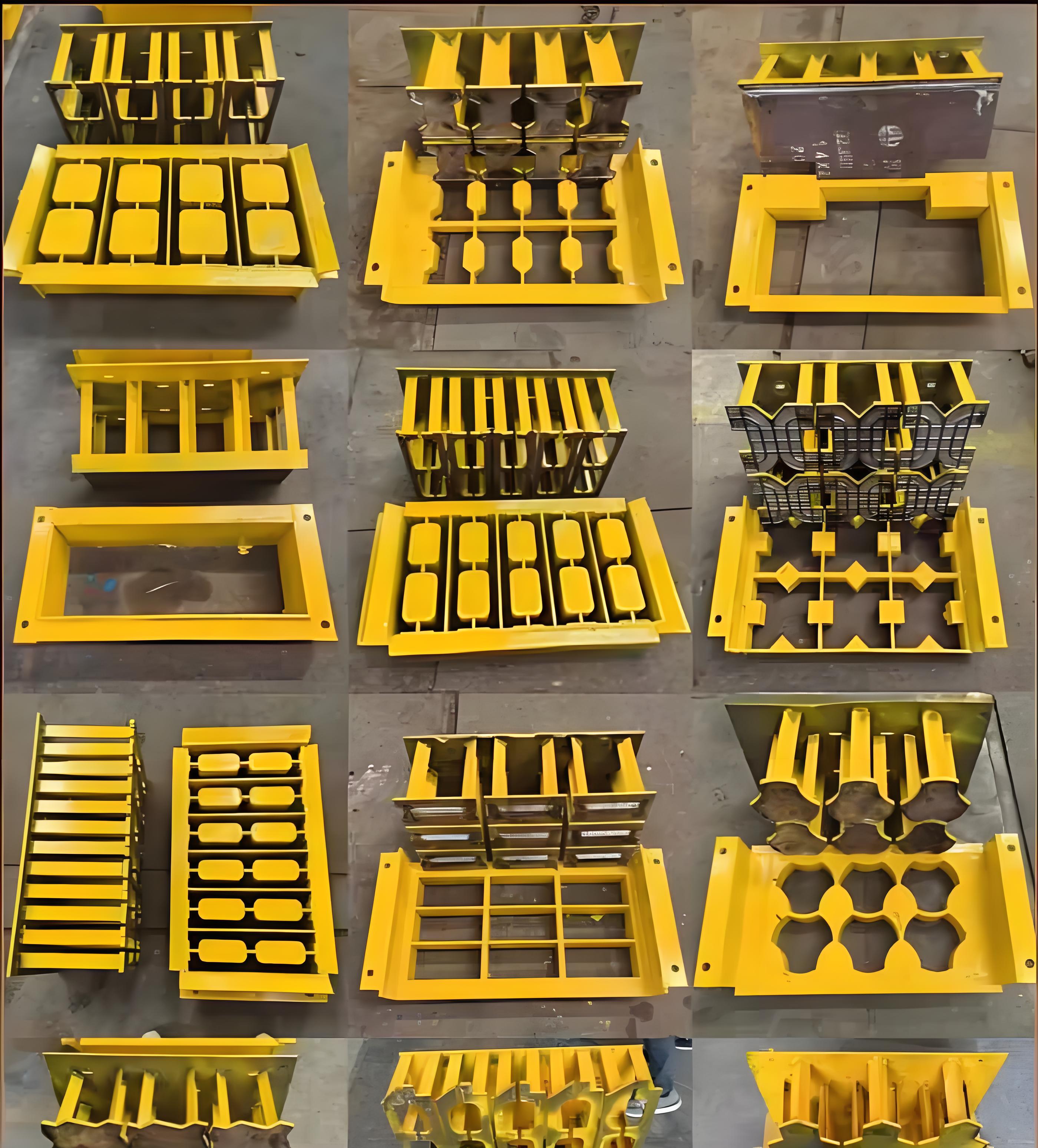

9 | Mould | 1 unit |
