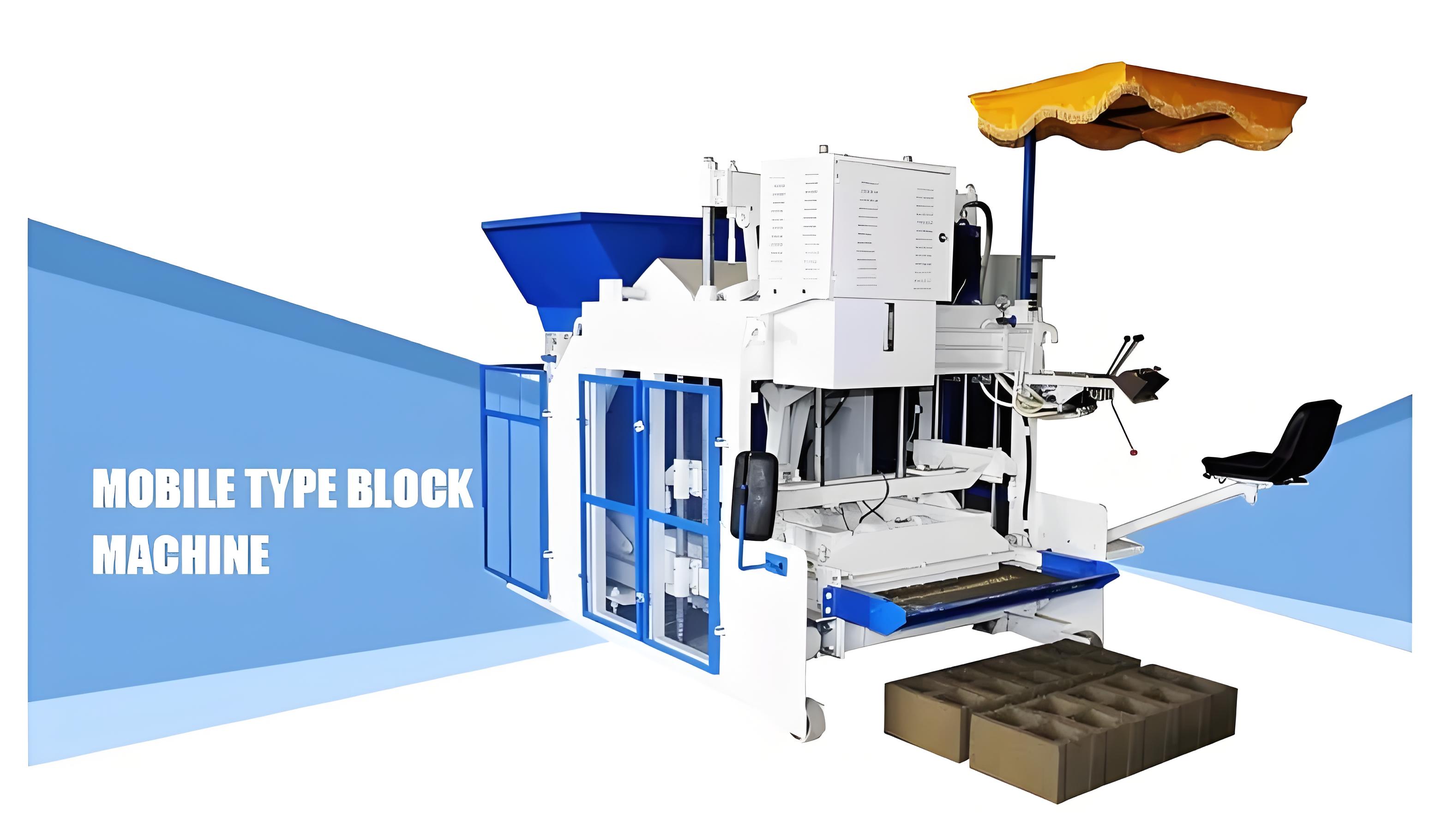

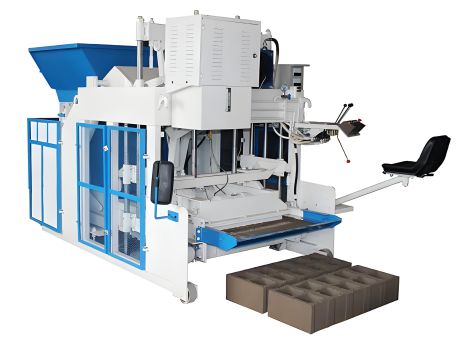

QMJ-10A Egg-laying Block Making Machine
Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：30s
Production Capacity (e.g.)：400x200x200mm: 10 pcs/mould, 11520 pcs/day(8 hours)
Block Forming Mode：Vibration + Pressure
Are You Looking For?
Production Capacity (block shapes and size can be customized)
Block Type | Block Sample | Block Size | Cycle Time | Qty. / Mould | Qty. / Hour |
Hollow Block
|
| 400x200x200mm | 30 s | 10 pcs |
1,200 pcs
|
Hollow Block |
| 400x150x200mm | 30 s | 12 pcs |
1,440 pcs
|
Hollow Block |
| 400x100x200mm | 30 s | 18 pcs | 2,160 pcs |
Main Specification
No. | Item | Specification |
1 | Block Forming Mode | Vibration + Pressure |
2 | Demoulding Method | Hydraulic |
3 | Turning Method | Hydraulic |
4 | Hydraulic Pressure | 16-21 Mpa |
5 | Vibration Form | Mould Vibration |
6 | Production Cycle Time | 30 seconds |
7 | Main Motors Power | 11.5 kw |
8 | Pallet Size | No need pallet |
9
| Applied Products
| Hollow Block, Porous Block, Solid Block, Paving Block, Grass-planting Block, Kerbstone, etc. |
