Brief introduction:

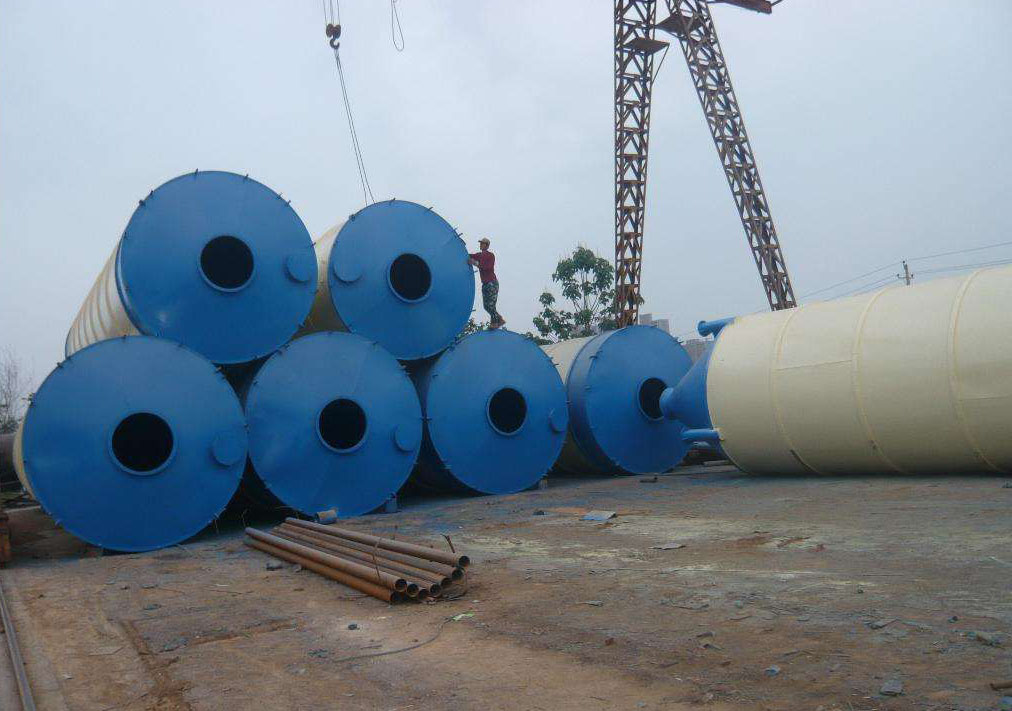

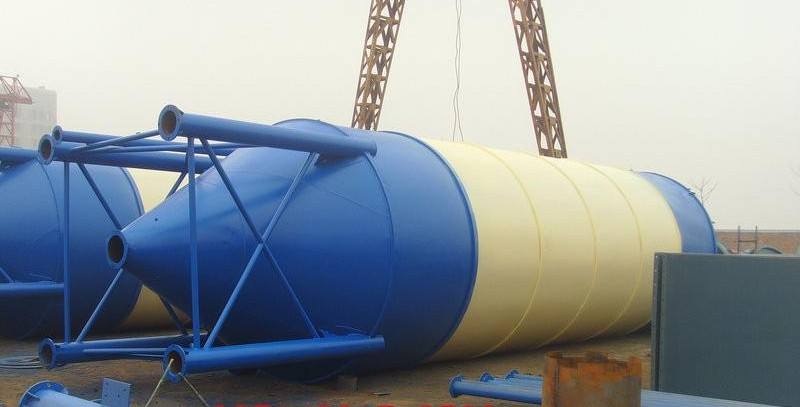

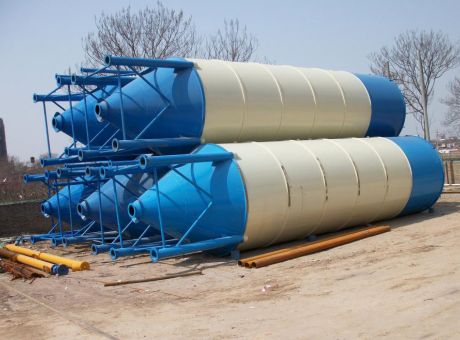

The cement silo is mainly composed of cement silo leg, valve, screw conveyor, cement arch breaking device, silo body, staircase, level gauge, silo top dust collector, etc. Suitable for storing all kinds of dry small granular materials or powder, such as cement, fly ash, dry sand, chemical powder, thickening powder, additives, etc. Usually used in mixing stations, dry mortar plants, highways, railways, tunnels, bridges, wharfs and other transit bulk cement. 50T, 80T, 100T, 120T, 150T, 200T, 300T cement tanks are common specifications, and can also be made according to customer requirements.

Technical data:

Advantage:

1.Good sealing structure and high temperature resistance

The cement silo produced by our company uses special sealing strips with high temperature resistance up to 200 degrees. After the sealing strip is compacted, the raw material is put into the cylinder for the first time, and the dust will automatically drill into the small gap to achieve the perfect self-sealing effect.

2.Good air tightness and wide application

Using special equipment for bending and seaming to ensure the technological quality of each part of the silo body, Therefore, the cement silo has excellent sealing performance, which can store all kinds of ultra-fine powder materials and prevent moisture and leakage.

3.Short construction period and low cost

The installation of cement silo can be constructed on site with fast installation speed and short construction period. The whole silo is made of thin steel plate, which has low weight and greatly reduces the cost.

4. Less area and light weight

The height and diameter of silos can be chosen in a wide range and the spacing between silos is small, which can make full use of the space. The self-weight of the silo is only 16% of the same volume concrete silo, which is only the same weight as the steel bars of the same volume concrete silo, that obviously reducing the load of the foundation structure and the cost of building the silo.
