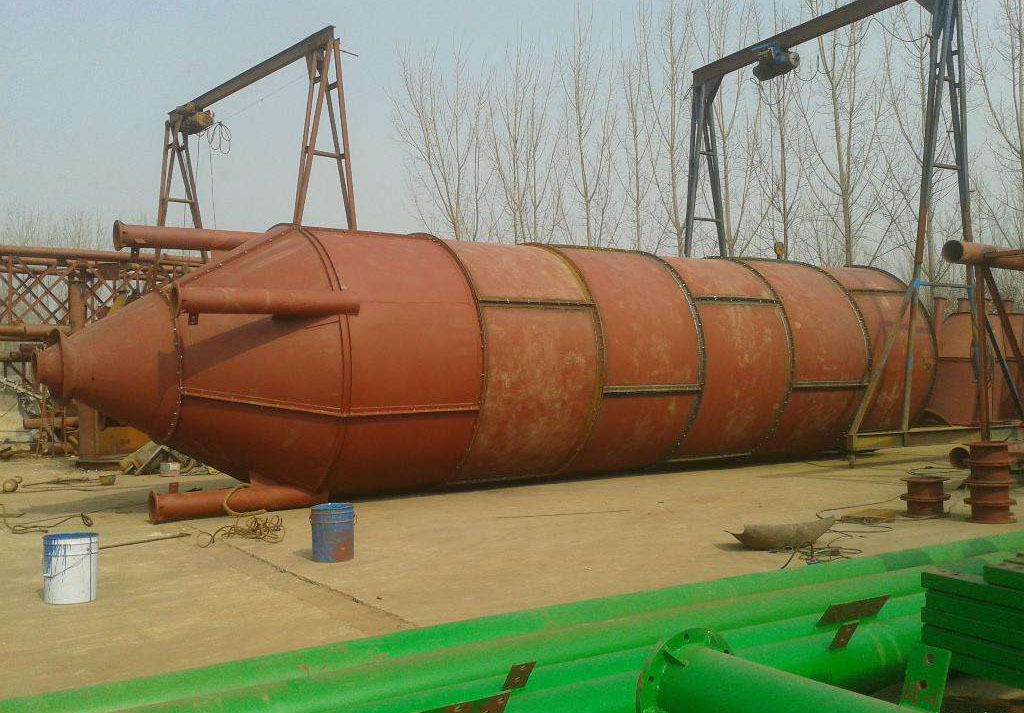

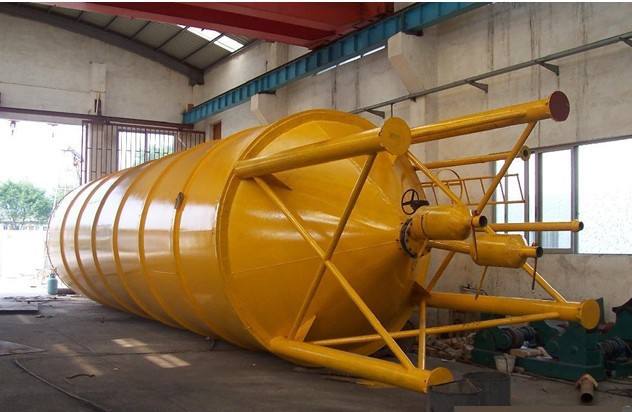

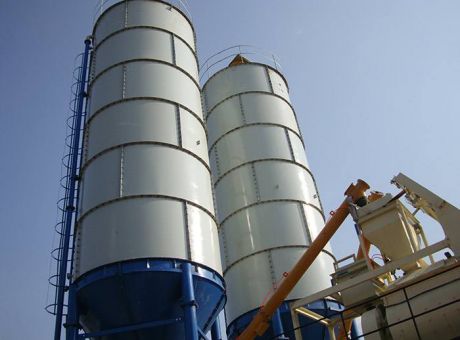

Bolted cement silo
Model：50-500T
Steel：Q235
Discharge port height：7.4 m
Are You Looking For?
Brief introduction:
The 50T-200T bolted type cement silo adopts advanced manufacturing technology and special equipment moulding at one time. It has the characteristics of silo interchange, fast installation, firm structure, smooth appearance, no cement leakage, no water seepage, good sealing, disassembly, recycling, ultra-low transportation cost and so on.
Technical data:
Bolted Cement Silo Model | Steel | Thickness | Silo diameter | Silo height | Total height |
50T | Q235 | 6-6-4-4-4-3-3 mm | 2,150 mm | 11,429 mm | 19,829 mm |
100T | Q235 | 6-6-5-4-4-3-3 mm | 3,000 mm | 11,429 mm | 21,056 mm |
120T | Q235 | 8-8-6-5-4-4-4 mm | 4,000 mm | 10,186 mm | 19,578 mm |
150T | Q235 | 8-8-6-6-4-4-4 mm | 4,000 mm | 11,418 mm | 20,428 mm |
200T | Q235 | 8-8-5-5-4-4-4 mm | 4,512 mm | 12,949 mm | 21,619 mm |
Advantage:
1. Good sealing structure and high temperature resistance
2. Good air tightness and wide application
3. Short construction period and low cost
4. Less area and light weight
5. Suitable for loading into containers and exporting to overseas.
