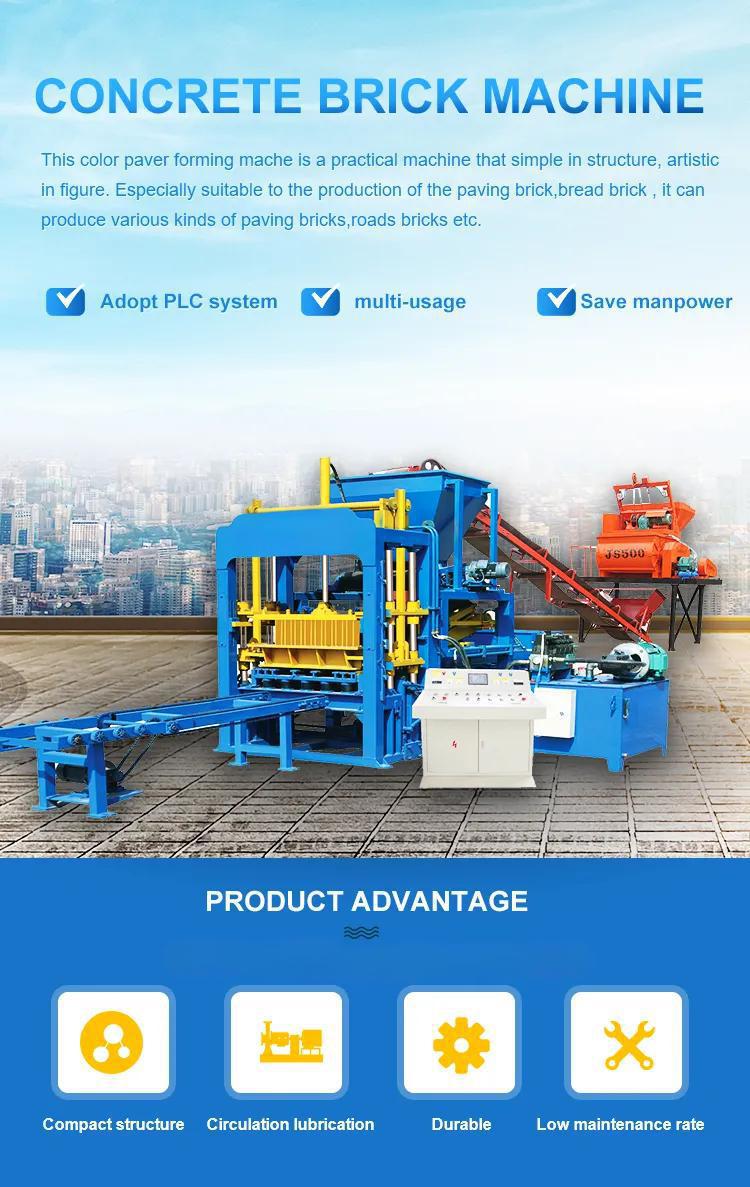

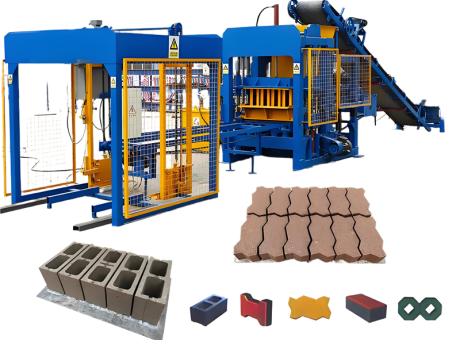

QT4-15 Automatic Block Making Machine

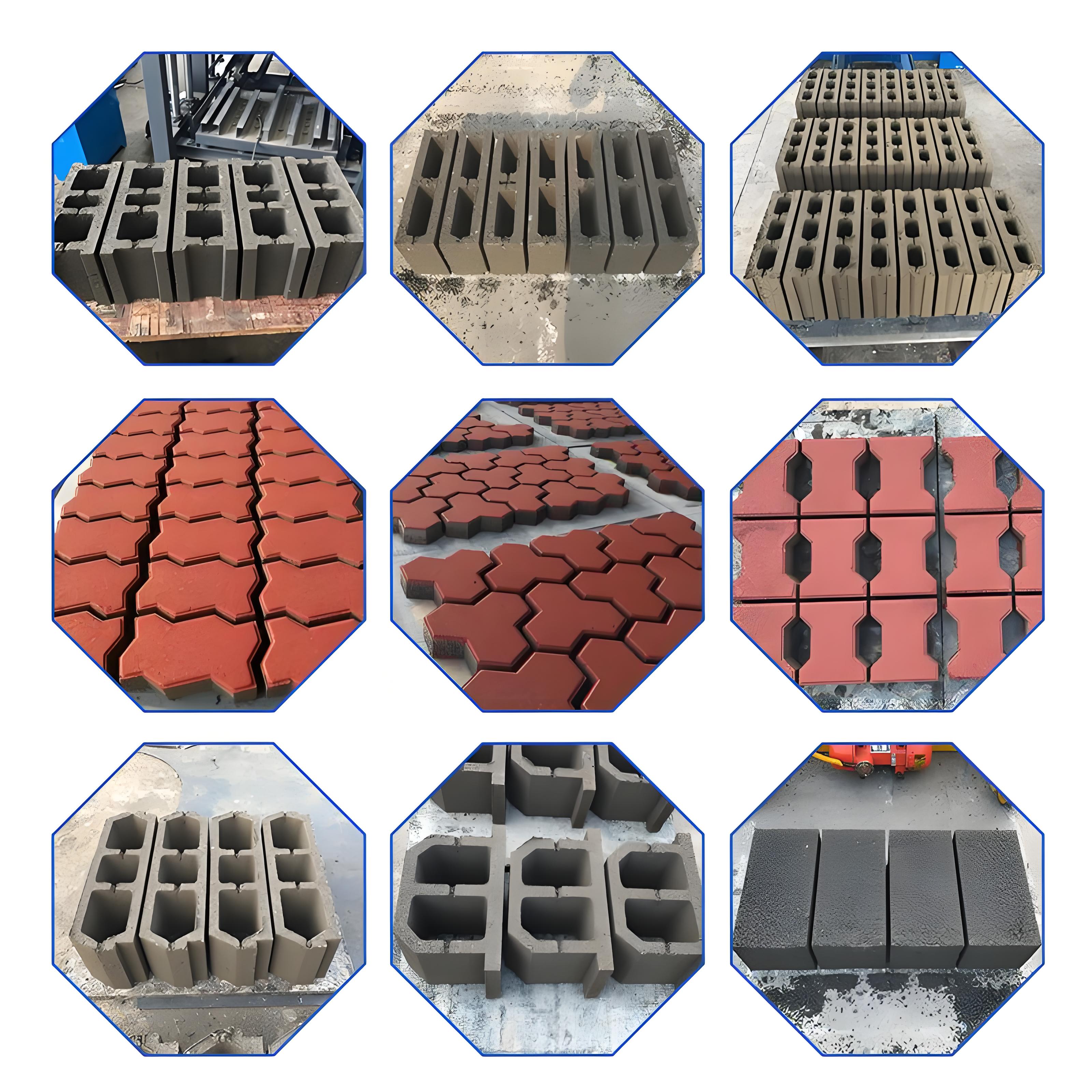

Blocks can be produced：Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：15-25s
Production Capacity (e.g.)：390x190x190mm: 4pcs/mould, 7680pcs/day(8 hours)
Block Forming Mode：Platform Vibration + Hydraulic Pressure
Control Mode：Automatic
Are You Looking For?
Production Capacity (block shape and size can be customized)
Block Type | Block Sample | Block Size | Cycle Time | Qty. / Mould | Qty. / Hour |
Hollow Block
|
| 390x190x190mm | 15-20 s | 4 pcs | 720-960 pcs |

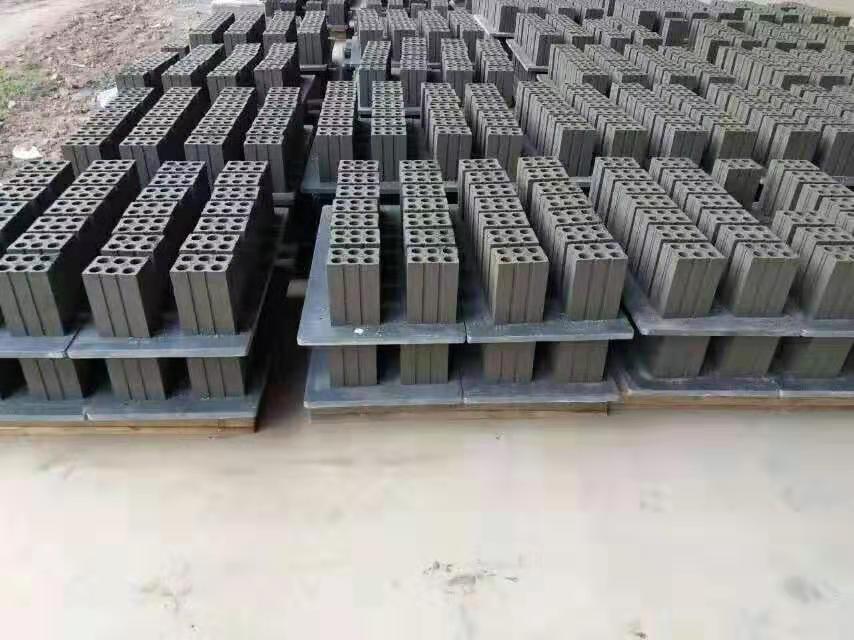

Porous Block |
| 240x115x90mm | 15-20 s | 14 pcs |
2,520-3,360 pcs
|
Solid Block |
| 240x115x53mm | 15-17 s | 28 pcs | 5,930-6,720 pcs |
Paving Block |
| 225x112.5x60mm | 10-15 s | 14 pcs | 3,360-5,040 pcs |
Main Specifications
No. | Item | Specification |
1 | Block Forming Mode | Platform Vibration + Hydraulic Pressure |
2 | Vibration Force | 380 kN |
3 | Vibration Frequency | 4600 rpm |
4 | Rated Pressure | 16 Mpa |
5 | Production Cycle Time | 15-20 seconds |
6 | Main Motors Power | 28 kw |
7 | Pallet Size | 1020x570 mm |
8 | Main Machine Size | 7100x1600x2610 mm |
9 | Main Machine Weight | 4500 kg |
10 | Applied Products | Hollow/Porous/Solid/Paving/Grass-planting Block, Kerbstone, etc. |
Main Components
No. | Components | Qty. |
1 | PLD1200 Aggregate Batcher | 1 unit |
2 | JS500 Twin-shaft Concrete Mixer | 1 unit |
3 | 8m Belt Conveyor for Raw Material | 1 pcs |
4 | QT4-15 Block Making Machine | 1 unit |

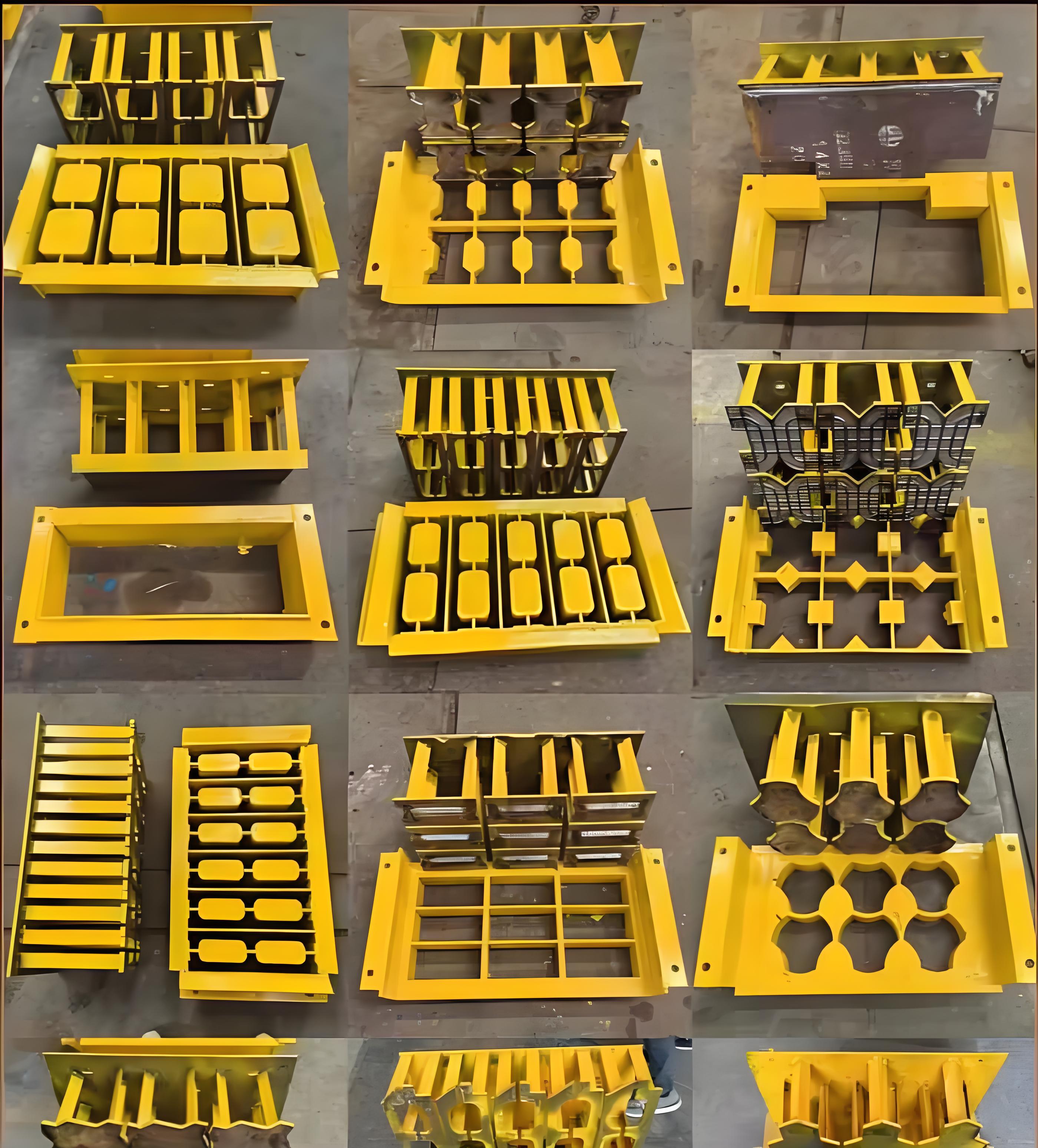

5 | Mould | 1 unit |
6 | JW350 Pan Mixer for Mixing Color Material | 1 unit |
7 | 6m Belt Conveyor for Color Material | 1 pcs |
8 | Color Material Feeder | 1 unit |
9 | Pallet Stacker | 1 unit |
